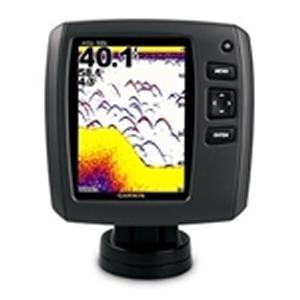

GARMIN ECHO 500C Fishfinder sounder met de TM TR

With 500 watts (RMS) power, depths to 1,900 ft and a five-inch colour display, echo 500c ushers in the next generation of fishfinders. Experience Picture-Perfect Fishing When bragging rights are on the line, this is the technology to turn to. echo 500c scans the waters with 500 watts RMS power and extra-sensitive Garmin HD-ID™ target tracking technology. Then it displays what it sees on a five-inch QVGA display.



A dual-beam transducer optimises performance for deep or shallow water, offering wide-angle (up to 10 degree) coverage to target fish beyond the sides of your boat and the ability to scan bottom profiles down to 1,900 ft. For an uninterrupted view of the sonar image, echo 500c boasts Garmin Smooth Scaling™ technology, which means you won’t lose sight of the sonar history as the unit changes depth ranges.



It also features the ability to rewind your sonar history in order to ensure that you haven't missed a thing. Mount and Go echo 500c is one of the most intuitive fishfinders on the market. Installation takes only a few minutes using the quick-release tilt mount and versatile transom-mount transducer included in the box.



echo 500c features:



Garmin HD-ID™ technology 500 watts (RMS) transmit power Depths to 1,900 ft Beam width to 120 degrees 5 in sunlight-readable QVGA colour display Tilt/swivel mount, transducer, trolling motor clamp and transom mount Physical & Performance: Unit dimensions, WxHxD: 6.0" x 5.9" x 1.8" (15.2 x 15.0 x 4.6 cm) Display size, WxH: 2.9” x 4.0” (7.4 x 10.16 cm); 5” diag, (12.7 cm) Display resolution, WxH: 234 x 320 pixels Display type: QVGA, 256 colours Weight: 17.6 oz (499 g) Waterproof: yes (IPX7) Features: Audible alarms: yes Dual-frequency sonar capable: no Dual-beam sonar capable : yes Split-screen zoom: yes Ultrascroll™ (displays fish targets at higher boat speeds): yes Fish Symbol ID (helps identify fish targets): yes AutoGain Technology (minimizes clutter, maximizes targets): yes Whiteline (indicates hard or soft bottom): no Adjustable depth line (measures depth of underwater objects): yes A-scope (real time display of fish passing through transducer beam): yes Bottom lock (shows return from the bottom up): yes Water temperature log and graph: yes Water temperature sensor included: yes Water speed capable (displays speed on water): yes Other: Frequency: 200/77 kHz Transmit power: 500W (RMS)/4,000W (peak to peak) Voltage range: 10V - 28V input Maximum depth: 1,900 ft freshwater* Cone angle: 60º or 120º (dual beam) Additional: *Depth capacity is dependent on water bottom type and other water conditions What's in the Box: echo 500c Quick release mount with tilt and swivel Power cable Transducer w/ mounting bracket, hardware and trolling motor clamp Documentation
