Echomax Active X radarreflector

Echomax Active X radarreflector

Product uit assortiment

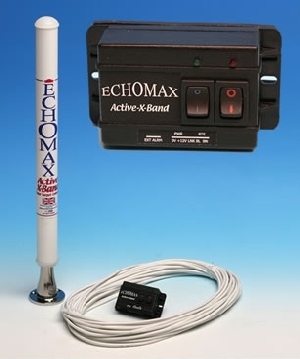

PBO On Test! Click the "Downloads" tab above to view the Echomax Active X PBO test results! Echomax Active-X Band Radar Target Enhancer This is a new active radar reflector offering excellent performance. Receives a signal from a transmitting radar, amplifies and returns a stronger signal. This increases the likelihood of detection reducing the risk of collision and helps to alert oncoming vessels of your position. Specifications: Reception frequency: X band 9.3 - 9.5GHz Operating Temp:-20 to 60 degrees C Voltage: 12V DC - +30% -10% (voltage surge and cross polarity protected) Stand by current consumption: <15mA Position Accuracy: within 1 meter Typical 24 hour period e.g 5 radar in the area: <.55Ah 10 radar in the area: <.75Ah EIRP: 1W (typically) PERFORMANCE RESPONSE Zero degrees 111.36M2 +/-10 degrees of heel 78.96M2 +/-20 degrees of heel 20.80M2 * Stated performance level - QinetiQ Anechoic Chamber Funtington 13th March 09 Exceeds ISO 8729-2 effective 22nd July 09 X band performance requirements 7.5M2 @ 10 degrees of heel for motor vessels and 20 degrees of heel for sailing vessels DIMENSIONS Length 478mm width 40.5mm Control box width 92mm heigth 51mm depth 38mm Weight 327 gms excluding cable Cable length 24M 2 core 0.5mm2 cable wt. 969grms CONTROL BOX for interior installation Surface mount with optional base or rear entry cable facility Red LED to indicate power on. Green LED illuminates when being painted by radar One short flash in 2.4 seconds indicates one radar signal. Multiple flashes in 2.4 seconds indicates multiple radar signals Note: 2.4 seconds is time for revolution of normal speed radar. High speed radar will repeat every 1.5 seconds Externally accessible fuse Triple alarm facility Green LED indicates being painted by radar Switchable Internal buzzer which sounds when being painted by radar Volt free relay contact for switching up to 8A to control vessels deck horn, klaxon or deck light FITTING Base fitting: female 1 inch - 14NF (recommended fitting is as high as possible with 360 degree clear azimuth) OPTIONAL EXTRAS



Glomex Offset mast head bracket Glomex stainless base fitting for A frames Glomex plastic safety rail clamp fitting. Glomex 12 inch extension pole to ensure installation height above navigation light 12V Deck Klaxon kit< External alarm relay (not required when current draw is within the 8A load) Complies Recent tests by QinetiQ of an advanced, new generation prototype show excellent performance through ±10 and 20 degrees of heel and in the vertical position, fully meeting the performance requirement of the new ISO8729-2 at X-band 9.4GHz used by pleasure and commercial vessels alike. Comparison below has been made with the Sea-Me RTE which has received very good yachting press reviews and is reputed to be the best selling RTE in the UK. Active-X Sea-Me vertical position111.36M242.57M2 10 degrees of heel78.96M224.87M2 2020.80M24.35M2 The above figures are stated performance level (SPL) 7.5M2 is required to meet the performance requirements of ISO 8729-2 X band at 10 degrees for motor vessels and 20 degrees for sailing vessels. Stand by current15Ma150Ma External alarm facility 8A volt free contact90Ma The Sea-Me data was obtained from the March 07 MAIB Performance investigation of marine radar reflectors following the Ouso disaster or the Sea-Me RTE manual.
