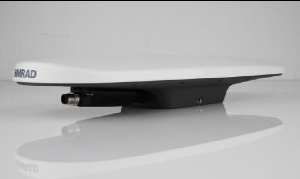

SIMRAD HS70 SATELLIET KOMPAS

Experience superior navigation with the new Simrad HS70 heading and positioning smart antenna. The Simrad HS70 brings a series of new features to a traditional heading sensor including rate of turn, heave, pitch and roll output (pitch and roll only on NMEA2000).



The HS70 uses SBAS (WAAS, EGNOS, MSAS, etc.) for differential GPS positioning providing a low cost, yet highly effective heading and position based smart antenna. The rugged and low profile enclosure provides two multipath-resistant antennas for accuracy, portability and simple installation. The maintenance free smart antenna, measuring only 40cm/16", mounts easily to a flat surface or pole.



Main Features: Provides heading, positioning, rate of turn, heave, roll (only on NMEA2000), and pitch (only on NMEA2000) SimNet/NMEA2000 or NMEA0183 communication All in one antenna –no black box needed Excellent in-band and out-of-band interference rejection 0.75 degree heading accuracy in amazingly small form factor Extremely quick time-to-first-fix Differential positioning accuracy of <1.0 m, 95% of the time Integrated gyro and tilt sensors deliver fast start-up times and provide heading updates during temporary loss of GPS SBAS compatible (WAAS, EGNOS, MSAS, etc.) COAST™technology maintains differentially-corrected positioning for 40 minutes after loss of differential signal. 12 and 24V DC input voltage
