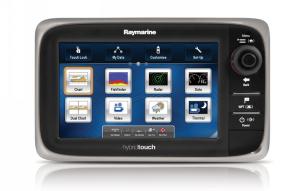

RAYMARINE E7D HYBRID MULTI TOUCH MFD (MET EU KAART)
RAYMARINE E7D HYBRID MULTI TOUCH MFD (MET EU KAART)
RAYMARINE E7D HYBRID MULTI TOUCH MFD (MET EU KAART)
The Raymarine e7 multifunction display's sleek, low-profile, bezel offers maximum display size in a small footprint. Feature rich, the Raymarine e7 is equipped with three processors so you can enjoy stunning 3D graphics, brilliant video and instantaneous chart redraws. And with Wi-Fi streaming to Apple iPhones and iPads, Bluetooth connectivity and SeaTalkHS networking capability, the Raymarine e7 puts you in total control.
Dimensions |
226 x 142 x 150mm max to cable bend radius (W x H x D) |
Cartography |
Worldwide base map for non cartography variants Navionics Ready to Navigate in all other variants (upgradable to Navionics Gold/ Platinum) |
Nominal voltage |
13.8 V DC |
Voltage range |
10.2 - 15.6 V DC |
Power at maximum brightness |
13.2 Watts |
Power in standby mode |
less than 100mW (at 10 V) |
Display |
7" landscape (800 x 480 pixels) with LED backlighting |
Display viewing angles |
+/- 70º horizontal and +/- 50º vertical |
Weight |
Raymarine e7 2.385 kg (5.26 lbs) Raymarine e7D 2.423 kg (5.34 lbs) |
Networking |
Up to 6 e7 displays or sensors using a network switch |
Mounting options | Surface mount as standard or trunnion mount using optional bracket assembly |
GPS |
48 channels 1 second hot start 35 seconds upwards cold start |
Languages |
UK English, US English, French, German, Danish, Dutch, Spanish, Italian, Norwegian, Finnish, Turkish, Swedish, Portuguese, Russian, Chinese, Japanese, Korean, Croatian, Greek and Polish. |
Operation temperature range |
-25º to 55ºC (13º to 131ºF) |
Connectivity |
WiFi 802.11 b/g Bluetooth 2.1 + EDR power class 1.5 Video input (PAL/NTSC/SECAM) SeaTalkNG / NMEA 2000 NMEA 0183 input (x2) NMEA output (4800/9600/38,400 baud) Sonar transducer port (e7D only) Ethernet 10/100 Mbits/s |
