Scanstrut SC103 SC100 Pole Mount - Aluminium (1.9m) - voor de andere 2kW/4kW ra

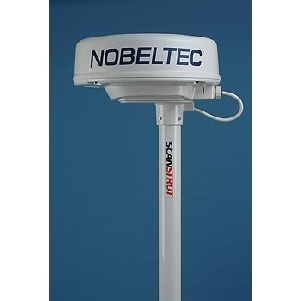

SC103 1.9M Pole Mount Product overview Scanstrut’s SC103 Pole Mount allows installation of your radar or 30cm or 40cm satcom antenna onto the deck or transom of your boat. See Product Selection guide in Brocure for comaptibility - downloads section above. Suits most domes bar Raymarine and Garmin. Features Adjustable base, able to rotate through 360° and angle from horizontal all the way to vertical Unique pole extrusion accommodates two cable channels with a cover strip to hold cables in place



Supplied with two support modules providing maximum fore / aft and sideways bracing Easily removed for racing or winter storage, leaving just low profile base on deck Dimensions 1.9m / 6.4’ recommended for deck mounting 3” diameter pole Base diameter of just 80mm / 3.1” Materials Marine grade 6082 aluminium pole Polyester powder coated for a durable and gloss white finish



Kit includes For 2kW or 4kW and 30cm satcom installations: 1 x Pole (complete with 2 x cable cover strips) 1 x Adjustable base 1 x Top for radar / satcom antenna 1 x 1200mm / 3.9’ deck strut 1 x Rail stand off for 25mm / 1” rail* For 40cm satcom installations: 1 x Pole (complete with 2 x cable cover strips) 1 x Adjustable base 1 x Top for radar / satcom antenna 2 x 1800mm / 6' deck strut
