Scantstrut DPT-SR1-30 Compact Dual PowerTower - voor radarkoepels & 30cm satcom

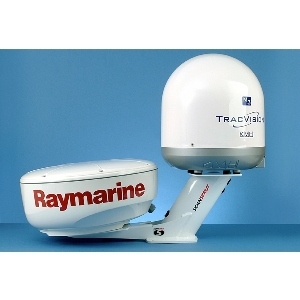

Compact Dual PowerTower Product overview Scanstrut’s Compact Dual PowerTower® allows installation of 2kW and 4kW Raymarine radomes and the KVH M3 on a single space-saving mount. Installing the satcom antenna above the radar eliminates antenna interference and ensures maximum performance from both applications. Featuring an adjustable radar mounting plate, the mount allows for variation in radome size, enabling the radar to be positioned as close as possible to the structural centre of gravity, ensuring minimal load is placed on the radar arch.



Features Lightweight fabrication – only 8.37 lbs / 3.8 kg Minimal mounting area required, can be installed even where deck space is limited Hollow stem to route cables neatly inside mount Pre-fitted waterproof IP65 gland to seal cable entry into stem Pre-drilled mounting holes for quick and easy installation Dimensions 250mm low profile - an ideal installation for smaller power boats 200mm square footprint – minimal mounting area required Materials Marine grade 6082 aluminium Polyester powder coated for a durable and gloss white finish Kit includes 1 x Compact Dual PowerTower 1 x Radome mounting plate 1 x Watertight base seal 1 x Waterproof IP65 gland (pre-fitted)
