Scanstrut DPT-SO2-40 Dual PowerTower - voor open array & 40cm satcom

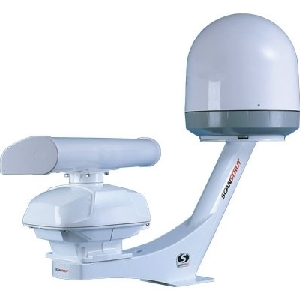

Dual PowerTower Product overview Scanstrut’s Dual PowerTower® mounts allow the installation of radar and satcom antennas together on a single space-saving mount. Installing the satcom antenna above the radar eliminates antenna interference and ensures maximum performance from both applications. The range includes options to mount: 2kW or 4kW radomes + 40cm or 60cm satcom antennas 4’ open-array + 40cm or 60cm satcom antennas Refer to Product Selection Guide in the back of the brochure in the download section above



Features Minimal mounting area required, can be installed even where deck space is limited Hollow stem to route cables neatly inside mount Pre-fitted waterproof IP65 gland to seal cable entry into stem Pre-drilled mounting holes for quick and easy installation Dimensions 11.5” / 290mm square footprint Materials Marine grade 6082 aluminium Polyester powder coated for a durable and gloss white finish Kit includes 1 x Dual PowerTower 1 x Watertight base seal 1 x Waterproof IP65 gland (pre-fitted)
