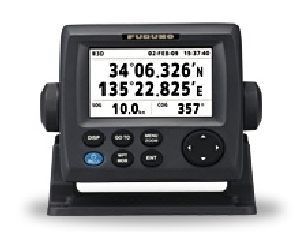

Furuno GPS NAVIGATOR GP33

Compact in size, yet big on features and performance, the FURUNO GP-33 is the perfect GPS navigator for a wide range of vessels. This advanced unit provides reliable and accurate position fixing, thanks to a super sensitive, 12-channel GPS receiver combined with integrated WAAS technology.



The GP-33 has a waterproof display and is built to stand up to tough marine conditions. The durable casing houses an impressive memory, capable of storing up to 3,000 points of ship’s track, 10,000 points for marks and waypoints, and 100 routes of up to 30 waypoints each. Vital navigation data is presented on a 4.3" color LCD. The GP-33 features FURUNO’s CAN bus interface system for feeding highly accurate navigation data to your NavNet 3D, radar, chart plotter, autopilot, fish finder or other navigation equipment.



The unit offers easy plug-and-play installation with CAN bus network connectivity. NMEA0183 protocol versions are also supported. 4.3" "Sunlight Viewable" color LCD (Brightness: 700 cd) Enhanced data legibility thanks to large characters and high resolution visual aid Stores up to 10,000 marks/waypoints, 100 routes and 3,000 track points 7 display modes available, including 2 user-customized modes Supports both NMEA0183 and CAN bus interface Contact closure capability available on the 10P connector SBAS capable for better measurement



TECHNICAL SPECIFICATIONS DISPLAY Screen Size4.3" color LCD Effective Display Area95.04 (W) x 53.85 (H) mm Pixel Number 480 (V) x 272 (H) pixels Display ModePlotter, Highway, Steering, Nav Data, Satellite, User Display1, User Display2 Memory Capacity3,000 ship's track points 10,000 marks and waypoints with comments 100 routes, 30 waypoints/route Tracking Velocity 999.9 knots Geodetic Systems WGS-84 (and others) ACCURACY GPS: Better than 10 m (2rdms) WAAS: Better than 3 m (2rdms) INTERFACE PortsDATA1: CAN bus DATA2: NMEA0183 (ver 2.0, 3.0) DATA3: RS-232C Output NMEA0183 AAM, APB, BOD, BWC, BWR, DTM, GGA, GLL, GSA, GSV, RMB, RMC, VTG, XTE, ZDA CAN bus 059392, 060928, 061184, 126208, 126464, 126720-1, 126720-2, 126992, 126996, 127258, 129026, 129029, 129033, 129044, 129283, 129284, 129285, 129538, 129539, 129540, 130822, 130823 Input CAN bus 059904, 060928, 061184, 065286, 126208, 126720 POWER SUPPLY 15V DC : LEN7 (CAN bus) 12-24V DC : 0.24-0.12 A (Non CAN bus) ENVIRONMENT Temperature Display unit: -15°C to +55°C Antenna unit: -25°C to +70°C Waterproofi.ng Display unit: IP56 Antenna unit: IPX6
