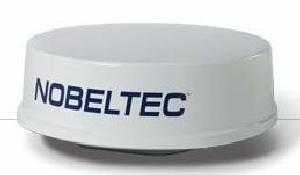

Nobeltec 4kW 25 Inch Raydome voor gebruik met de NVS & Admiral

Please note: Radar and software are sold separately. Radar Technical Specifications Transceiver25" enclosed radome Rotation24 RPM Peak Power Output4000 Watts Transmitting Frequency9410 +/- 30MHz Beam Width3.9° (Wide), 25° (Vertical) Range Scales NM1/8, 1/4, 1/2, 3/4, 1, 1 1/2, 2, 3, 4, 6, 8, 12, 16, 24, 36 ResolutionUp to 1024 x 1024 pixels, 16 colors Presentation ModeCourse Up, North Up, Leg Up or Heads Up Bearing



AccuracyBetter than 1% FunctionFTC, Interference Rejection, Target Expansion, Auto Calibrate, EBL, VRM, Zoom, Overlay, Gain, STC, Trails Echo Trail IntervalsContinuous, 15, 30 sec., 1, 3, 6 min. Guard ZoneOmni directional – fully user defined Min Detectable RangeBetter than 25 Meters at 1/8 NM range Range DiscriminationBetter than 25 Meters Range AccuracyBetter than 8 Meters or .9% of max range of scale in use Pulse Length.08 mSec/2000Hz (Short range) .25 mSec/1000Hz (Medium range) .8 mSec/500 (Long range) IF Center Frequency60 MHz IF Band Width15 MHz (20 MHz average) short and medium range, 5 MHz (3.0 MHz average) long range Power Consumption55 Watts or less



Voltage Supply10.8 to 41.6 VDC PC Interface10/100 ethernet connection - Cat 5 or better Cable Length Provided 2 Meters standard crossover ethernet. (Control box to PC.) Operating Temperature-13° to 131° F (-25° to 55° C) Wind Force100 knots relative Water ResistanceIPX6 (IEC60945) Transmission SpeedUp to 460 kbs OutputRadar image video by proprietary protocol InputRadar control by proprietary protocol Dimensions, Weight25" W x 10.06" H, 22.5 lbs.
