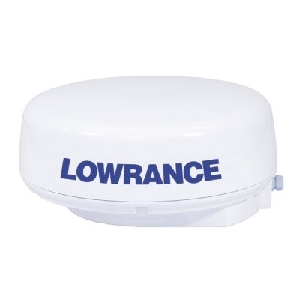

LOWRANCE LRA2400 HD 4KW 24 INCH SCANNER

LRA2400 HD 4KW 24 Inch Scanner High Definition Digital Radar features Radar/Chart Overlay, Gain and Sea Clutter adjustment, Smart STC, Automatic Tuning, and color palette choices. Specifications Antenna Beam Width Horizontal4 ° Antenna Beam Width Vertical25 ° Antenna Distance Range48 nm Antenna Output Power4 kW Antenna Size2 ft 0.6 m



Antenna TypeRadome TECHNICAL / ENVIRONMENTAL Weight22.05 lbs 10 kg OTHER FTC (Rain Clutter Rejection - on/off only), Interference Rejection (up to 3 levels), Smart STC, Gain Adjustment (up to 256 levels), Automatice Tuning, and 7 levels of Trail Settings. LRA-2400 is compatible with: GlobalMap 9300c HD, GlobalMap 9200c, GlobalMap 8300c HD, GlobalMap 8200c, GlobalMap Baja 840c, GlobalMap 7300c HD, GlobalMap 7200c, Globalmap 5200c, Globalmap 5300c iGPS, Globalmap Baja 540c, LCX-113c HD, LCX-112c, LCX-38c HD, LCX-37c, LCX-28c HD, LCX-27c, LMS-520c, LMS-522c iGPS, LMS-525c DF, LMS-525c DF, X510c, X515c DF. Also now compatible with new HDS series plotters. Requires interface cable, please contact for details.



Products may require a free software upgrade.
