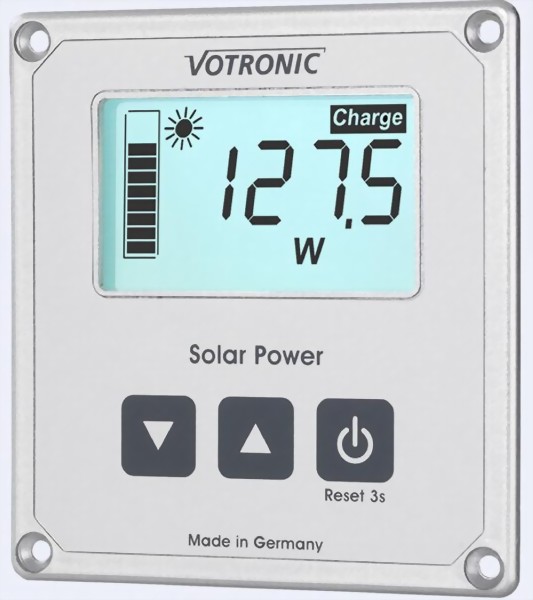

Votronic Solar LCD computer S - 1250
Votronic Solar LCD computer S - 1250
Inclusief BTW (21%) Verzendinformatie*
|
| ||||||||||
| > Show additional information ... | ||||||||||
| < Hide additional information ... | ||||||||||
| ||||||||||
| Device Type | LCD Solar Computer S | |||||||||
| Nominal Battery Voltage (DC) [V] | 12 and 24 | |||||||||
| Current Consumption max. [mA] | 3 | |||||||||
| Display | LCD | |||||||||
| Display Functions | W, A, V, Ah, kWh | |||||||||
| Measuring Range | 0-999 W, 0-32 A, 7-32 V, 0-9999 Ah, 0-9999 kWh | |||||||||
| Dimensions (WxHxD) [mm] | 80 x 85 x 21 | |||||||||
| Assembly Dimensions (WxHxD) [mm] | 65 x 71 x 18 | |||||||||
| Weight [g] | 60 | |||||||||
| (1 Dimensions incl. mounting flanges, without connections | ||||||||||
| Mark of Conformity | CE, E Test (EMV/Automotive Regulations) | |||||||||
| Scope of Delivery | Display, connection cable 5 m length, fastening screws, operating manual, drilling jig | |||||||||
| Recommendable Accessories |
Casing S order no. 2014 Connection cable 5 m length order no. 2005 | |||||||||
| Execution with humidity-proof electronic system, order No. 11250 available | ||||||||||
