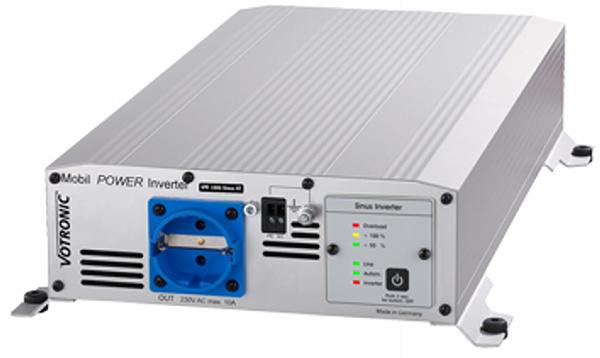

Votronic Mobile Power Inverter SMI ST 1800 sinus / 24 V met schroefloze aansluitklemmen voor aansluiting op de accu - 6169
| > Show additional information ... | ||||||||||
| < Hide additional information ... | ||||||||||
| ||||||||||
| Device Type | Inverter SMI 1800 Sinus ST / 24 V | |||||||||
| Nominal Battery Voltage (DC) [V] | 24 | |||||||||
| Output Voltage (AC) [V] | 230 pure sine | |||||||||
| Output Frequency | 50 Hz crystal stabilized | |||||||||
| Efficiency | > 93 % | |||||||||
| Consumers CosPhi | no restriction | |||||||||
| Output Capacity Permanent [W] | 1800 | |||||||||
| Output Capacity short-time / peak [W] | 2500 / 3600 | |||||||||
| Own Consumption StandBy [W] | 10 | |||||||||
| Overload Protection | yes | |||||||||
| Overtemperature Protection | yes | |||||||||
| Temperature-controlled, Speed-controlled Fan | yes | |||||||||
| Power Saving Mode | yes | |||||||||
| Remote Control | yes | |||||||||
| Size of the terminal [mm2] | 2 x 50 | |||||||||
| Temperature Range [°C] | -20 to +45 | |||||||||
| Degree of Protection / Protection Class | IP21 / I, II | |||||||||
| Dimensions (WxHxD) [mm] | 265 x 90 x 400 (¹ | |||||||||
| Weight [g] | 5500 | |||||||||
| Ambient Conditions, Humidity of Air | max. 95 % RH, no condensation | |||||||||
| Safety Requirements | EN 60950 | |||||||||
| (1 Dimensions incl. mounting flanges, without connections | ||||||||||
| Mark of Conformity | CE, E Test (EMV/Automotive Regulations) | |||||||||
| Scope of Delivery |
inverter, connection cable 5 m length for control panel/remote control, mains cable, manual | |||||||||
| Recommendable Accessories |
power fuse holder order no. 2250 with high-current cable 25 mm² length 40 cm, order no. 2262 power fuse 175 A order no. 2256 control unit order no. 2065 additional remote control for sine inverter order no. 2067 mounting frame S for Remote Control order no. 2016 Required Accessories: high-current cable set red/black 25 mm2, 1 m length order no. 2268 or 25 mm2, 2 m length order no. 2272 | |||||||||
| Execution with humidity-proof electronic system, order No. 16169 available | ||||||||||
