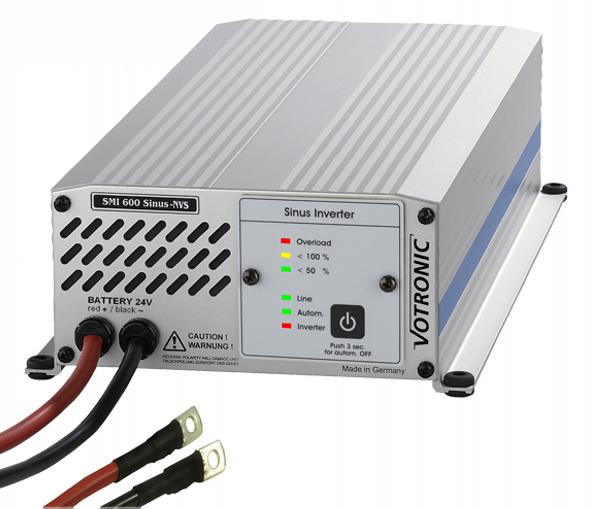

Votronic Mobile Power Inverter SMI sinus NVS 600/24 ??V met aansluitkabel (elektronica tegen vocht beschermd) - 16158
| > Show additional information ... | ||||||||||
| < Hide additional information ... | ||||||||||
| ||||||||||
| Device Type | Inverter SMI 600 Sinus -NVS / 24V | |||||||||
| Nominal Battery Voltage (DC) [V] | 24 | |||||||||
| Output Voltage (AC) [V] | 230 pure sine | |||||||||
| Output Frequency | 50 Hz crystal stabilized | |||||||||
| Efficiency | > 93% | |||||||||
| Consumers CosPhi | no restriction | |||||||||
| Output Capacity Permanent [W] | 600 | |||||||||
| Output Capacity short-time / peak [W] | 840 / 1200 | |||||||||
| Min. Battery Capacity (recommended) [Ah] | > 60 | |||||||||
| Current Consumption (DC) at Nominal Power [A] | 28 | |||||||||
| Battery Overvoltage max. [V] | 32 | |||||||||
| Battery Undervoltage min. [V] | 21 | |||||||||
| Own Consumption [W] | (on, without load) 9 | |||||||||
| Own Consumption StandBy [W] | (without load) approx. 5 | |||||||||
| Overload Protection | yes | |||||||||
| Overtemperature Protection | yes | |||||||||
| Temperature-controlled, Speed-controlled Fan | yes | |||||||||
| Power Saving Mode | yes | |||||||||
| Remote Control | yes | |||||||||
| Autom. Commutation to Mains (NVS) | yes / Rating max. 2300 W | |||||||||
| Input Country Current 230 V | yes | |||||||||
| Connection Cable Battery | 10 mm?/1.2 m | |||||||||
| Temperature Range [°C] | -20 to +45 | |||||||||
| Degree of Protection / Protection Class | IP21 / I, II | |||||||||
| Dimensions (WxHxD) [mm] | 160 x 71 x 305 (? | |||||||||
| Weight [g] | 2500 | |||||||||
| Ambient Conditions, Humidity of Air | max. 95 % RH, no condensation | |||||||||
| Safety Requirements | EN 60950 | |||||||||
| (1 Dimensions incl. mounting flanges, without connections | ||||||||||
| Mark of Conformity | CE, E Test (EMV/Automotive Regulations) | |||||||||
| Scope of Delivery | inverter, connection cable 5 m length for control panel/remote control, mains cable, manual | |||||||||
| Recommendable Accessories | control unit order No. 2065 additional remote control for sine inverter order No. 2067 fuse holder order No. 2242 stripe fuse 40 A order No. 2244 | |||||||||
