- Output voltage in quality of mains voltage (pure sine)
- Uncompromising, unproblematic, trouble-free operation of all the mains operated appliances, such as radio equipment, charging devices (of mobile phones, wireless transmitting sets, hand lamps, storage batteries etc.), laptops, computers, air-conditioners, refrigerator boxes, electric tools (drills, right angle grinders etc.), TV, SAT, TFT, microwave ovens, fully automatic coffee makers, hair driers, fans, lamps, vacuum cleaners, refrigerators etc.
- The control panel can be rotated by 360 °, and it can be used as remote control (e. g. in the cabin).
- Switch mode technology, compact, lightweight, robust and reliable, short-time high overload is admissible
- Low current consumption, selectable power-saving mode:Continuous operation, automatic stand-by with automatic search for switched-on consumers, OFF
- Automatic disconnection in case of overvoltage/low voltage of the battery, overload, overheating etc.
- Comfort cooling fan with power control, temperature control and continuous speed control
- Integrated mains priority control with overload protection 10 A safety cutout
| |
Device Type |

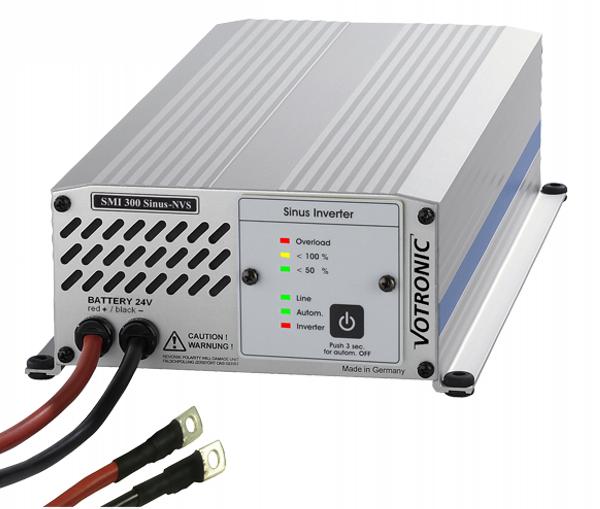

Inverter SMI 300 Sinus -NVS / 24V |
Nominal Battery Voltage (DC) [V] |
24 |
Output Voltage (AC) [V] |
230 pure sine |
Output Frequency |
50 Hz crystal stabilized |
Efficiency |
> 93 % |
Consumers CosPhi |
no restriction |
Output Capacity Permanent [W] |
300 |
Output Capacity short-time / peak [W] |
420 / 600 |
Min. Battery Capacity (recommended) [Ah] |
> 50 |
Current Consumption (DC) at Nominal Power [A] |
13.5 |
Battery Overvoltage max. [V] |
32 |
Battery Undervoltage min. [V] |
21 |
Own Consumption [W] |
(on, without load) 6 |
Own Consumption StandBy [W] |
(without load) approx. 3 |
Overload Protection |
yes |
Overtemperature Protection |
yes |
Temperature-controlled, Speed-controlled Fan |
yes |
Power Saving Mode |
yes |
Remote Control |
yes |
Autom. Commutation to Mains (NVS) |
yes / Rating max. 2300 W |
Input Country Current 230 V |
yes |
Connection Cable Battery |
4 mm?/1.2 m |
Temperature Range [°C] |
-20 to +45 |
Degree of Protection / Protection Class |
IP 21 / I, II |
Dimensions (WxHxD) [mm] |
160 x 71 x 305 (? |
Weight [g] |
1850 |
Ambient Conditions, Humidity of Air |
max. 95% RH, no condensation |
Safety Requirements |
EN 60950 |
(1 Dimensions incl. mounting flanges, without connections
|
Mark of Conformity |
CE, E Test (EMV/Automotive Regulations) |
Scope of Delivery |
inverter, connection cable 5 m length for control panel/remote control, mains cable, manual |
Recommendable Accessories |
control unit order No. 2065 additional remote for sine inverter order No. 2067 fuse holder order No. 2242 stripe fuse 30 A order No. 2243 |
