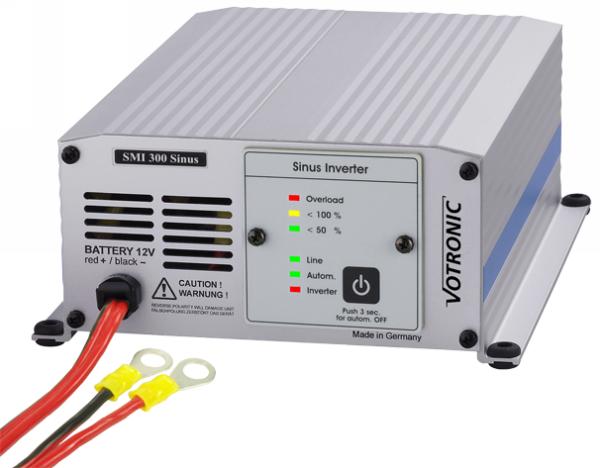

Votronic Mobile Power Inverter SMI driehonderd sinus - 3155
Votronic Mobile Power Inverter SMI driehonderd sinus - 3155
Inclusief BTW (21%) Verzendinformatie*
| > Show additional information ... | ||||||||||
| < Hide additional information ... | ||||||||||
| ||||||||||
| Device Type | Inverter SMI 300 Sinus | |||||||||
| Nominal Battery Voltage (DC) [V] | 12 | |||||||||
| Output Voltage (AC) [V] | 230 pure sine | |||||||||
| Output Frequency | 50 Hz crystal stabilized | |||||||||
| Efficiency | > 93 % | |||||||||
| Consumers CosPhi | no restriction | |||||||||
| Output Capacity Permanent [W] | 300 | |||||||||
| Output Capacity short-time / peak [W] | 420 / 600 | |||||||||
| Min. Battery Capacity (recommended) [Ah] | > 60 | |||||||||
| Current Consumption (DC) at Nominal Power [A] | 27.5 | |||||||||
| Battery Overvoltage max. [V] | 16 | |||||||||
| Battery Undervoltage min. [V] | 10.5 | |||||||||
| Own Consumption [W] | (on, without load) 3.5 | |||||||||
| Own Consumption StandBy [W] | (without load) approx. 1 | |||||||||
| Overload Protection | yes | |||||||||
| Overtemperature Protection | yes | |||||||||
| Temperature-controlled, Speed-controlled Fan | yes | |||||||||
| Power Saving Mode | yes | |||||||||
| Remote Control | yes | |||||||||
| Connection Cable Battery | 4 mm²/1.2 m | |||||||||
| Temperature Range [°C] | -20 to +45 | |||||||||
| Degree of Protection / Protection Class | IP 21 / II | |||||||||
| Dimensions (WxHxD) [mm] | 160 x 75 x 210 (¹ | |||||||||
| Weight [g] | 1300 | |||||||||
| Ambient Conditions, Humidity of Air | max. 95% RH, no condensation | |||||||||
| Safety Requirements | EN 60950 | |||||||||
| (1 Dimensions incl. mounting flanges, without connections | ||||||||||
| Mark of Conformity |
CE, E Test (EMV/Automotive Regulations) | |||||||||
| Scope of Delivery |
Battery connecton cable of a suitable cross-section, connection cable 5 m length for control panel/remote control, operating manual | |||||||||
| Recommendable Accessories | (protective covering of cables) fuse holder order No. 2242 stripe fuse 40 A order No. 2244 control unit order No. 2065 additional remote control for sine inverter order No. 2067 | |||||||||
| Execution with humidity-proof electronic system, order No. 13155 available | ||||||||||
