Art.Nr.:

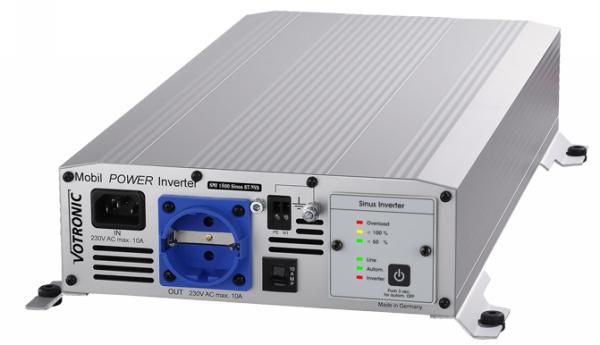

Votronic Mobile Power Inverter SMI 1500 sinus ST NVS met schroefloze klemmen - 3170
Votronic Mobile Power Inverter SMI 1500 sinus ST NVS met schroefloze klemmen - 3170
Inclusief BTW (21%) Verzendinformatie*
Votronic Mobile Power Inverter SMI 1500 sinus ST NVS met schroefloze klemmen - 3170
> Show additional information ... | ||||||||||
< Hide additional information ... | ||||||||||
| ||||||||||
Device Type | Inverter SMI 1500 Sinus ST-NVS | |||||||||
Nominal Battery Voltage (DC) [V] | 12 | |||||||||
Output Voltage (AC) [V] | 230 pure sine | |||||||||
Output Frequency | 50 Hz crystal stabilized | |||||||||
Efficiency | > 93% | |||||||||
Consumers CosPhi | no restriction | |||||||||
Output Capacity Permanent [W] | 1500 | |||||||||
Output Capacity short-time / peak [W] | 2100 / 3000 | |||||||||
Min. Battery Capacity (recommended) [Ah] | > 100 | |||||||||
Current Consumption (DC) at Nominal Power [A] | 145 | |||||||||
Battery Overvoltage max. [V] | 16 | |||||||||
Battery Undervoltage min. [V] | 10.5 | |||||||||
Own Consumption [W] | (on, without load) 10 | |||||||||
Own Consumption StandBy [W] | (without load) approx, 5 | |||||||||
Overload Protection | yes | |||||||||
Overtemperature Protection | yes | |||||||||
Temperature-controlled, Speed-controlled Fan | yes | |||||||||
Power Saving Mode | yes | |||||||||
Remote Control | yes | |||||||||
Autom. Commutation to Mains (NVS) | yes / Rating max. 2300 W | |||||||||
Input Country Current 230 V | yes | |||||||||
Size of the terminal [mm2] | 2 x 50 | |||||||||
Temperature Range [°C] | -20 to +45 | |||||||||
Degree of Protection / Protection Class | IP21 / I, II | |||||||||
Dimensions (WxHxD) [mm] | 265 x 90 x 405 (¹ | |||||||||
Weight [g] | 5200 | |||||||||
Ambient Conditions, Humidity of Air | max. 95 % RH, no condensation | |||||||||
Safety Requirements | EN 60950 | |||||||||
(1 Dimensions incl. mounting flanges, without connections | ||||||||||
Mark of Conformity | CE, E Test (EMV/Automotive Regulations) | |||||||||
Scope of Delivery | inverter, connection cable 5 m length for control panel/remote control, mains cable, manual | |||||||||
Recommendable Accessories | power fuse holder order No. 2250 power fuse 225 A order No. 2258 high-current cable 35 mm² length 40 cm, order No. 2263 control unit order No. 2065 additional remote control for sine inverter order No. 2067 Required Accessories: high-current cable set red/black 35 mm2, 1 m length order No. 2269 or 35 mm2, 2 m length order No. 2273 | |||||||||
Execution with humidity-proof electronic system, order No. 13170 available |
