- Output voltage in quality of mains voltage (pure sine)
- Uncompromising, unproblematic, trouble-free operation of all the mains operated appliances, such as radio equipment, charging devices (of mobile phones, wireless transmitting sets, hand lamps, storage batteries etc.), laptops, computers, air-conditioners, refrigerator boxes, electric tools (drills, right angle grinders etc.), TV, SAT, TFT, microwave ovens, fully automatic coffee makers, hair driers, fans, lamps, vacuum cleaners, refrigerators etc.
- The control panel can be rotated by 360 °, and it can be used as remote control (e. g. in the cabin)
- Switch mode technology, compact, lightweight, robust and reliable, short-time high overload is admissible
- Low current consumption, selectable power-saving mode:Continuous operation, automatic stand-by with automatic search for switched-on consumers, OFF
- Automatic disconnection in case of overvoltage/low voltage of the battery, overload, overheating etc.
- Comfort cooling fan with power control, temperature control and continuous speed control
| |
Device Type |

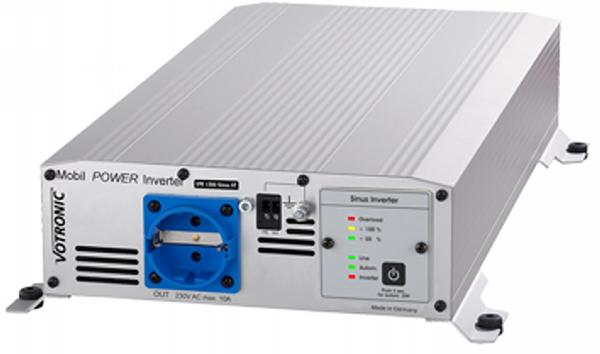

Inverter SMI 1500 Sinus ST |
Nominal Battery Voltage (DC) [V] |
12 |
Output Voltage (AC) [V] |
230 pure sine |
Output Frequency |
50 Hz crystal stabilized |
Efficiency |
> 93 % |
Consumers CosPhi |
no restriction |
Output Capacity Permanent [W] |
1500 |
Output Capacity short-time / peak [W] |
2100 / 3000 |
Min. Battery Capacity (recommended) [Ah] |
> 100 |
Current Consumption (DC) at Nominal Power [A] |
145 |
Battery Overvoltage max. [V] |
16 |
Battery Undervoltage min. [V] |
10.5 |
Own Consumption [W] |
(on, without load) 10 |
Own Consumption StandBy [W] |
(without load) approx. 5 |
Overload Protection |
yes |
Overtemperature Protection |
yes |
Temperature-controlled, Speed-controlled Fan |
yes |
Power Saving Mode |
yes |
Remote Control |
yes |
Size of the terminal [mm2] |
2 x 50 |
Temperature Range [°C] |
-20 to +45 |
Degree of Protection / Protection Class |
IP21 / I, II |
Dimensions (WxHxD) [mm] |
265 x 90 x 405 (¹ |
Weight [g] |
4900 |
Ambient Conditions, Humidity of Air |
max. 95 % RH, no condensation |
Safety Requirements |
EN 60950 |
(1 Dimensions incl. mounting flanges, without connections
|
Mark of Conformity |
CE, E Test (EMV/Automotive Regulations) |
Scope of Delivery |
inverter, connection cable 5 m length for control panel/remote control, manual |
Recommendable Accessories |
power fuse 225 A order No. 2258 high-current cable 35 mm² length 40 cm order No. 2263 control unit order No. 2065 additional remote control for sine inverter order No. 2067
Required Accessories: high-current cable set red/black 35 mm2, 1 m length order No. 2269 or 35 mm2, 2 m length order No. 2273 |
