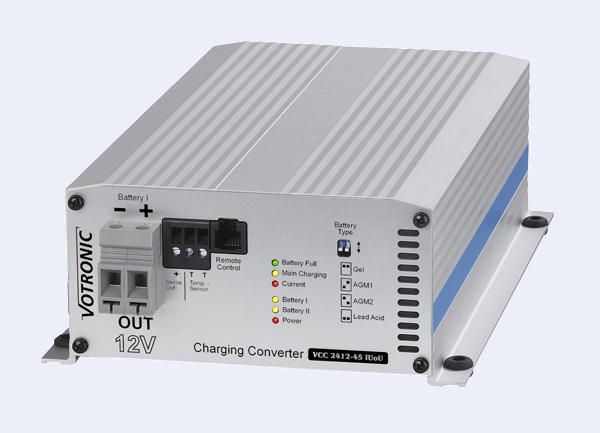

Votronic Lader Converter VCC 2,412-45 IUoU - 3319
Votronic Lader Converter VCC 2,412-45 IUoU - 3319
Inclusief BTW (21%) Verzendinformatie*
| Device Type | Charging Converter VCC 2412-45 IUoU | |||||||||
| Charging Capacity [V]/[A] | 12 / 45 | |||||||||
| max. Current [A] |
33 | |||||||||
|
Input Voltage [V] |
22-32 | |||||||||
| Battery Type adjustable | acid, gel, AGM1, AGM2 | |||||||||
| Battery Nominal Voltage IN [V] | 24 | |||||||||
| Battery Capacity IN min [Ah] | 60 | |||||||||
| Power Input IN max. [W] | 720 | |||||||||
| Battery Nominal Voltage OUT [V] | 12 | |||||||||
| Battery Capacity OUT [Ah] | 90-360 | |||||||||
| Characteristic Line of Charging | IU1oU2 | |||||||||
| Overvoltage Cut-off [V] | yes | |||||||||
| Ripple Factor Voltage [mV] rms | yes | |||||||||
| Switching Input D+ | yes | |||||||||
| Charging Timer | 3-fold | |||||||||
| Protection against wrong Polarization | yes | |||||||||
| Short-circuit Protection | yes | |||||||||
| Rear Discharge Protection | yes | |||||||||
| Safety Protection | yes | |||||||||
| Input for Temperature Sensor / Remote Control / Remote Indicator | yes / yes / yes | |||||||||
| Temperature-controlled, Speed-controlled Fan | yes | |||||||||
| Overheating Cut-off | yes | |||||||||
| Measuring Input Control through Start Battery | yes | |||||||||
| Degree of Protection / Protection Class | IP 21 | |||||||||
| Dimensions (WxHxD) [mm] | 160 x 71 x 245 (¹ | |||||||||
| Weight [g] | 1800 | |||||||||
| Ambient Conditions, Humidity of Air | max. 95 % RH, no condensation | |||||||||
| Safety Requirements | EN 60335-2-29 | |||||||||
| (1 Dimensions incl. mounting flanges, without connections | ||||||||||
| Mark of Conformity | CE, E Test (EMV/Automotive Regulations) | |||||||||
| Scope of Delivery |
Converter, manual | |||||||||
| Recommendable Accessories |
Temperature Sensor order no. 2001 Remote Control S order no. 2075 Remote Indicator IP67 order no. 2081 | |||||||||
| Execution with humidity-proof electronic system, order No. 13319 available | ||||||||||
