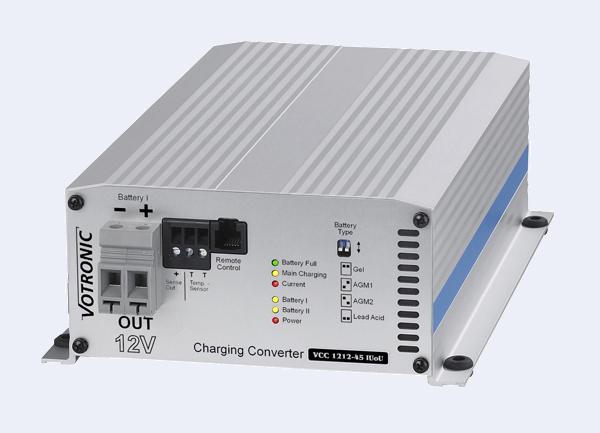

Device Type Charging Converter VCC 1212-45 IUoU
Charging Capacity [V]/[A] 12 / 45
max. Current
[A]
65

Input Voltage [V]

11-16
Battery Type adjustable acid, gel, AGM1, AGM2
Battery Nominal Voltage IN [V] 12
Battery Capacity IN min [Ah] 80
Power Input IN max. [W] 480
Battery Nominal Voltage OUT [V] 12
Battery Capacity OUT [Ah] 90-360
Characteristic Line of Charging IU1oU2
Overvoltage  Cut-off  [V] yes
Ripple Factor Voltage [mV] rms yes
Switching Input D+ yes
Charging Timer 3-fold
Protection against wrong Polarization yes
Short-circuit Protection yes
Rear Discharge Protection yes
Safety Protection yes
Input for Temperature Sensor / Remote Control / Remote Indicator yes / yes / yes
Temperature-controlled, Speed-controlled Fan yes
Overheating Cut-off yes
Measuring Input Control through Start Battery yes
Degree of Protection / Protection Class IP 21
Dimensions (WxHxD)  [mm] 160 x 71 x 245 (¹
Weight [g] 1800
Ambient Conditions, Humidity of Air max. 95 % RH, no condensation
Safety Requirements EN 60335-2-29
(1 Dimensions incl. mounting flanges, without connections
Mark of Conformity
CE, E Test (EMV/Automotive Regulations)
Scope of Delivery
Converter, manual
Recommendable Accessories
Temperature Sensor order no. 2001
Remote Control S order no. 2075
Remote Indicator IP67 order no. 2081


Execution with humidity-proof electronic system, order No. 13317 available
