- High switching current 100 A, short-time overload up to 180 A is admissible, can be switched over to 12 V/24 V board mains supply
- Intelligent switching threshold automatism always calculates the disconnection point "empty" being appropriate for optimum use and safe protection of the battery, from powerful consumers (low switching threshold at shorter response time) to very small loads (e. g. "hidden" current consumers with response times over days/months with high response threshold).
- Operation with 3 defined disconnection thresholds can be (manually) adjusted.
- The higher set values are keeping the starting capacity of intervention vehicles with only one battery circuit (according to DIN EN 1789)
- The preliminary alarm with visual (LED) and audible indication (beep, can be switched-off), as well as a separate warning terminal (PNP, plus potential, 0.2 A) allow to the user to take countermeasures in time (such as to disconnect consumers, which are not required).
- EMERGENCY ON function by switch at the unit; remote control is possible by external switch
- Automatic reset as soon as the battery voltage is in the normal range (charging)
- Separate sensor cable and switching thresholds with hysteresis and timer function for trouble-free operation
- Bi-stable power relay, very low own consumption: only 3-3 mA (according to EN 13976)
- No own consumption after disconnection by external switch, such as remote control as battery main switch
- Solid threaded battery connections for cable lugs M6, protection caps included in the standard delivery
| |
Device Type |

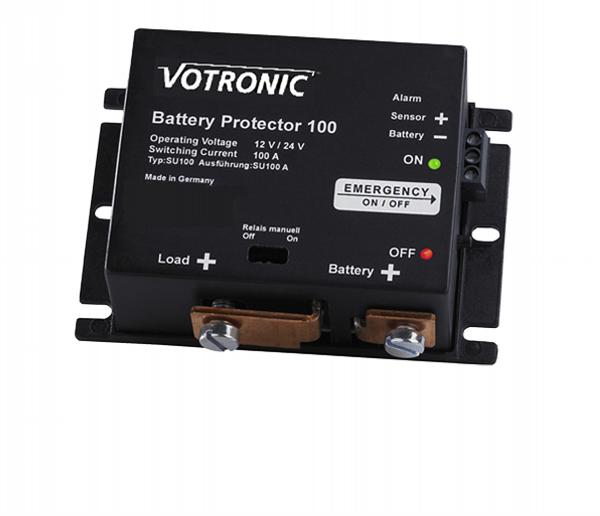

Battery Protector 100 |
Nominal Battery Voltage (DC) [V] |
12 and 24 |
Operating Voltage Range (DC) [V] |
8.5 - 35 |
Switching Current [A] |
100 (continuous) / 150 (short-time) |
Emergency On Function |
yes |
Temperature Range [°C] |
-20 to +40 |
System of Protection |
IP 20 |
Dimensions (WxHxD) [mm] |
105 x 77 x 38 (? |
Weight [g] |
180 |
Ambient Conditions, Humidity of Air |
max. 95 % RH, No Condensation |
(1 Dimensions incl. mounting flanges, without connections
|
Mark of Conformity |
CE, E Test (EMV/Automotive Regulations) |
Scope of Delivery |
unit, 2 protection caps, screws M6, manual |
Execution with humidity-proof electronic system, order No. 13078 available |
