Built-in chargers for fire fighting vehicles and intervention vehicles according to DIN 14679 of the FNFW
|
| > Show additional information ... |
| < Hide additional information ... |
Charging Program 5 „MOTOR“ for Lead, Acid/Lead-Acid Batteries, Characteristic Line IU1oU2
Characteristic line similar to dynamo/generator for mobile application (acid accumulation)with particularly low maintenance (battery gassing, water consumption). Charging and conservation of charge of starter batteries in intervention vehicles, according to a customary suggestion of the Standard Committee Fire Protection (FNFW). For conventional, standard starter batteries, starter batteries being “absolutely maintenance-free”, “maintenance-free according to EN”, “maintenance-free according to DIN”, “maintenance-free”, “low-maintenance”. |
Charging Program 6 „L“ for Closed Acid/Lead-Acid Batteries with Water Consumption L = low according to DIN EN 50342-1, Characteristic Line IUoU2
Characteristic line with average level U1 for acid batteries for chargers being installed in the vehicle or external chargers at a permanent location. |
Charging Program 7 „VL“ for Closed Acid/Lead-Acid Batteries with Water Consumption VL = very low according to DIN EN 50342-1, Characteristic Line IUoU2
Characteristic line with high level U1 for acid batteries for chargers being installed in the vehicle or external chargers at a permanent location. |
Charging Program 8 „Fleece“ for Closed Batteries (VRLA) with AGM/Fleece Technology, Characteristic Line IU1oU2
Characteristic line for AGM batteries for chargers being installed in the vehicle or external chargers at a permanent location. |
Charging Program 9 „Gel“ for Closed Batteries (VRLA) with Gel Technology, Characteristic Line IU1oU2
Characteristic line for gel batteries for chargers being installed in the vehicle or external chargers at a permanent location. |
Built-in chargers for fire fighting vehicles and intervention vehicles
The charger series VAC-F is designed for installation in the vehicle and complies with all regulations of the FNFW of the valid fire brigade standard DIN 14679 for charging and conservation of charge of auxiliary batteries and starter batteries in intervention vehicles.
- Charging programs No. 5, 6, 7, 8 and 9 (start, gel, AGM, acid) adjustable (refer to Technical Data)
- Outstanding charging technology (refer to Features)
- All-automatic continuous operation for permanent readiness for use of the vehicle
- The charging voltage is exempt from peaks, and it is controlled in such a way, that overcharging is excluded
- Trouble-free operation and simultaneous supply of the units being connected to the vehicle's board mains supply
- Optical and acoustical warning in case of battery failures and operating errors
- Precise temperature compensation, temperature sensor(s) is (are) included in the standard delivery
- Battery regeneration in case of extended stop periods twice a week
- Compensation of the voltage loss on the charging cables ensuring exact observation of the charging voltage rates
- Separation of the batteries in case of power failure, overheating, incorrect behaviour (safety relay for each charging port)
- Power pack function allows continued operation of the consumers and preservation of data, such as in case of battery replacement
- Manual charging start for totally discharged battery according to DIN 14679
- The electronic system is protected against humidity
| |
| Device Type |

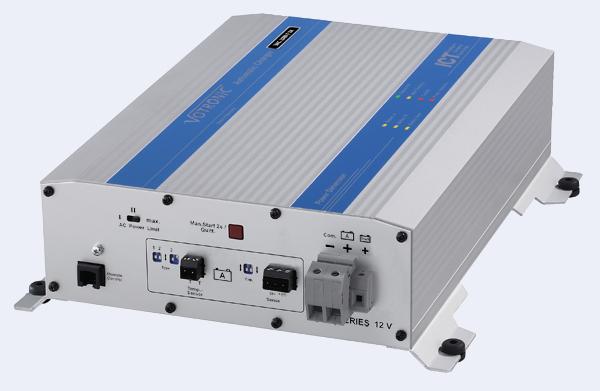

VAC 1280 F 2A |
| Charging Capacity [V]/[A] |
12 / 80 |
| Nominal Voltage (AC) [V] |
230 |
| Operating Voltage Range (AC) [V] |
190 - 265 (Full Charging Capacity) |
| Power Input (AC) max. [W] |
1400 |
Sinusoidal Power Factor Correction
(CosPhi = 1) |
yes |
| Nominal Battery Voltage (DC) [V] |
12 |
| Battery Capacity [Ah] |
120 - 400 |
| Charging Current [A] |
80 |
| Auxiliary Charging Port "S" [A] |
2 |
| Characteristic Line of Charging |
IU1oU2 |
| Battery Type adjustable |
acid I, acid II, gel, AGM, starter |
| Voltage Limitation during all Charging Modes and Programs to [V] |
15.2 |
| Ripple Factor Voltage [mV] rms |
< 50 |
| No. of Charging Ports |
1 + S |
| Adjustable Charging Programs No. |
5, 6, 7, 8, 9 |
| Battery Regeneration twice a week |
yes |
| Protection against wrong Polarization, Short-Circuit, Back Discharge |
yes |
| Parallel / Floating Operation for simultaneous Supply of Consumers |
yes |
| Compensation of the Voltage Loss on the Charging Cables |
yes |
| Inputs for Sensor Lines |
yes |
| Output Start Locking |
yes |
| Power Pack Function |
yes |
| Power Limit Function |
yes |
| Temperature-controlled, Speed-controlled Fan |
yes |
| Connection of Remote Indicator, Remote Control and Operation Remote Indicator |
yes |
| No. of Temperature Sensors |
1 |
| Fitting Position of the Unit |
any |
| Temperature Range [°C] |
-20 to +45 |
| Degree of Protection / Protection Class |
I / IP 21 |
| Dimensions (WxHxD) [mm] |
265 x 90 x 330 (¹ |
| Weight [g] |
3900 |
| Ambient Conditions, Humidity of Air |
max. 95 % RH, no condensation |
| Safety Requirements |
EN 60335-2-29 |
(1 Dimensions incl. mounting flanges, without connections
|
| Mark of Conformity |
CE |
| Scope of Delivery |
Automatic Charger, mains cable, manual, 1 Pc. temperature sensor |
| Recommendable Accessories |
remote control S order No. 2075
remote indicator IP67 order No. 2081 |
