for external charging for intervention vehicles in vehicle halls with permanent parking lots with helix cable length 5 m
|
> Show additional information ... |
< Hide additional information ... |
Charging Program 5 „MOTOR“ for Lead, Acid/Lead-Acid Batteries, Characteristic Line IU1oU2 Characteristic line similar to dynamo/generator for mobile application (acid accumulation)with particularly low maintenance (battery gassing, water consumption). Charging and conservation of charge of starter batteries in intervention vehicles, according to a customary suggestion of the Standard Committee Fire Protection (FNFW). For conventional, standard starter batteries, starter batteries being “absolutely maintenance-free”, “maintenance-free according to EN”, “maintenance-free according to DIN”, “maintenance-free”, “low-maintenance”. |
Charging Program 6 „L“ for Closed Acid/Lead-Acid Batteries with Water Consumption L = low according to DIN EN 50342-1, Characteristic Line IUoU2 Characteristic line with average level U1 for acid batteries for chargers being installed in the vehicle or external chargers at a permanent location. |
Charging Program 7 „VL“ for Closed Acid/Lead-Acid Batteries with Water Consumption VL = very low according to DIN EN 50342-1, Characteristic Line IUoU2 Characteristic line with high level U1 for acid batteries for chargers being installed in the vehicle or external chargers at a permanent location. |
Charging Program 8 „Fleece“ for Closed Batteries (VRLA) with AGM/Fleece Technology, Characteristic Line IU1oU2 Characteristic line for AGM batteries for chargers being installed in the vehicle or external chargers at a permanent location. |
Charging Program 9 „Gel“ for Closed Batteries (VRLA) with Gel Technology, Characteristic Line IU1oU2 Characteristic line for gel batteries for chargers being installed in the vehicle or external chargers at a permanent location. |
Charging Program 10 „External“ without allocation of the battery type, Characteristic Line IU1oU2 Charging of the vehicle’s battery by external charger over vehicle plug in vehicle halls with allocated or free parking lots. Universal program for charging and conservation of charge of acid/gel/AGM batteries. |

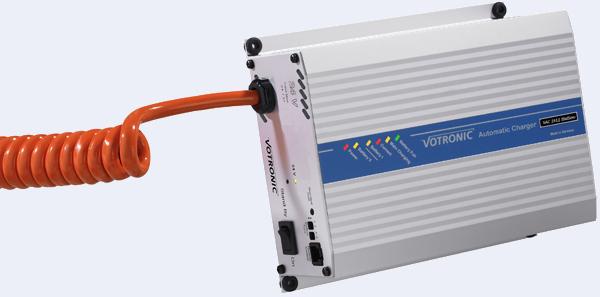

Chargers for external charging for intervention vehicles in halls with permanent or variable parking lots Charging Options: Vehicle battery + additional consumers The charger series VAC-Station is suitable for application in vehicle halls and complies with all regulations of the FNFW of the valid fire brigade standard DIN 14679 for external charging and following trickle charge of starter and auxiliary batteries in fire fighting vehicles with the exception of the protection against splash water IP21.
- with helix cable, 5 m length, prepared for direct connection of the charging connector at the cable end (such as charging connector 12 V/24 V, order No. 2331 or C-connector, order No. 2323)
- Cable length approx. 1.2 m, extractible to approx. 5 m
- Oilproof and acidproof cable for high mechanic stress, suitable for humid rooms
- Charging programs No. 5, 6, 7, 8, 9 and 10 adjustable for all battery types
- Automatic, quick and careful full charging and trickle charging of the vehicle battery according to DIN 14679
- Trouble-free operation and simultaneous supply of the units being connected to the vehicle's board mains supply (such as charging trays)
- VAC 1224-16 Station with automatic recognition and commutation to 12 V / 24 V board supply voltage
- Automatic separation from mains of the charging connector in case of missing battery (to prevent short-circuit and corrosion of connector)
- Optical and acoustical warning in case of battery failures and connection errors
- Outstanding charging technology
- All-automatic continuous operation for permanent readiness for use of the vehicle
- Compensation of the voltage loss on the charging cables ensuring exact observation of the charging voltage rates
- Variable fitting position due to additional unit label (included in the standard delivery)
- The electronic system is protected against humidity
| |
Device Type |
VAC-Station 2412 Helix |
Charging Capacity [V]/[A] |
24 / 12 |
Nominal Voltage (AC) [V] |
230 |
Operating Voltage Range (AC) [V] |
190 - 265 (Full Charging Capacity) |
Power Input (AC) max. [W] |
440 |
Sinusoidal Power Factor Correction (CosPhi = 1) |
yes |
Nominal Battery Voltage (DC) [V] |
24 |
Battery Capacity [Ah] |
50 - 160 |
Charging Current [A] |
12 |
Characteristic Line of Charging |
IU1oU2 |
Battery Type adjustable |
acid, gel, AGM |
Min. Battery Voltage for Charging Start [V] |
3 |
Voltage Limitation during all Charging Modes and Programs to [V] |
29.6 |
Ripple Factor Voltage [mV] rms |
< 50 |
No. of Charging Ports |
1 |
Adjustable Charging Programs No. |
5, 6, 7, 8, 9, 10 |
Battery Regeneration twice a week |
yes |
Protection against wrong Polarization, Short-Circuit, Back Discharge |
yes |
Parallel / Floating Operation for simultaneous Supply of Consumers |
yes |
Compensation of the Voltage Loss on the Charging Cables |
yes |
Temperature-controlled, Speed-controlled Fan |
yes |
Connection of Remote Indicator, Remote Control and Operation Remote Indicator |
yes |
Fitting Position of the Unit |
any |
Temperature Range [°C] |
-20 to +45 |
Degree of Protection / Protection Class |
I / IP 21 |
Dimensions (WxHxD) [mm] |
160 x 71x 210 (¹ |
Weight [g] |
1350 |
Ambient Conditions, Humidity of Air |
max. 95 % RH, No Condensation |
Safety Requirements |
EN 60335-2-29 |
(1 Dimensions incl. mounting flanges, without connections
|
Mark of Conformity |
CE |
Scope of Delivery |
Automatic Charger, mains cable, second unit label, helix cable, manual |
Recommendable Accessories |
remote control S order No. 2075 remote indicator IP67 order No. 2081
charging connector |
