Charging Program 1 „Gel“ for Gel Batteries, Characteristic Line IU1oU2
Adapted to closed, gas-tight gel/dryfit batteries with determined electrolyte, which are generally requiring a higher charging voltage level and longer dwell times U1 to achieve short charging times with particularly high capacity storage and to avoid total discharge. Also recommended for EXIDE MAXXIMA, high-current battery in AGM filament technology. |
Charging Program 2 "AGM" for AGM/Fleece Batteries, Characteristic LineIU1oU2
Adapted to charging of closed, gas-tight AGM (absorbet glass mat) batteries and batteries in lead-fleece technology requiring a particularly high level U1 with adapted dwell times for full charging and after that a moderate level U2 for conservation of charge (round cell and plate technology). |
Charging Program 4 „UNIVERSAL“ for Lead, Acid/Lead-Acid Batteries, Characteristic Line IU1oU2oU3
Universal program for charging and conservation of charge of acid batteries in vehicles(mixed operation mobile/stationary). Still offers short charging times, good charging factor and good acid mixing with average level U1 for open and closed, low-maintenance, maintenance-free standard, drive, lighting, solar and heavy-duty batteries. |
Designed for campers, boats and special purpose vehicles.
Charging Options: 1 or 2 Supply batteries and 1 or 2 Starter batteries
- Charging programs No. 1, 2 and 4 (gel, AGM, acid) adjustable to the battery type
- 2 Main charging ports (A + B) with charging current distributor for 2 batteries of the same type with equal authorization
- Outstanding charging technology
- The charging voltage is exempt from peaks, and it is controlled in such a way, that overcharging is excluded
- All-automatic continuous operation for permanent readiness for use of the batteries
- Precise temperature compensation of the battery (temperature sensor, order No. 2001, is required)
- Automatic battery regeneration in case of extended stop periods twice a week
- Compensation of the voltage loss on the charging cables ensuring exact observation of the charging voltage rates
- Intelligent microprocessor control observing the simultaneous supply of consumers
- Separation of the batteries in case of power failure, overheating, incorrect behaviour (safety relay for each charging port)
- Adjustable silent run function (reduction at night)
- Power pack function allows continued operation of the consumers and preservation of data, such as in case of battery replacement
- Integrated charging current distributor with 2 main charging ports, each with max. current and output capacity
- Charging current distributor can be switched to an own charging program for the starter battery
- If required, the starter battery can also be charged with full charging current (short stop period of the vehicle)
- Additional auxiliary charging port “S” for support charging and conservation of charge of a starter battery, max. 3 A
- 4 Battery capacity rates can be adjusted (12 charging programs in total)
- charging current distributors with voltage loss. Inputs for sensor (sense) lines, which can be optionally used in case of charging cables in overlength and in case of external diode
- The mains/charging capacity can be reduced in case of low capacity or restricted power supply (power limit function)
| |
| Device Type |

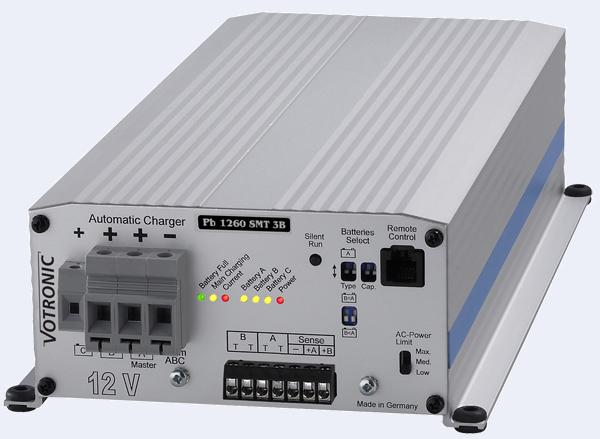

Pb 1260 SMT 3B |
| Charging Capacity [V]/[A] |
12 / 60 |
| Nominal Voltage (AC) [V] |
230 |
| Operating Voltage Range (AC) [V] |
190 - 265 (Full Charging Capacity) |
| Power Input (AC) max. [W] |
1060 |
Sinusoidal Power Factor Correction
(CosPhi = 1) |
yes |
| Nominal Battery Voltage (DC) [V] |
12 |
| Battery Capacity [Ah] |
120 - 660 |
| Charging Current [A] |
60 |
| Auxiliary Charging Port "S" [A] |
2 |
| Characteristic Line of Charging |
IU1oU2 |
| Battery Type adjustable |
acid, gel, AGM |
| Voltage Limitation during all Charging Modes and Programs to [V] |
14.9 |
| Ripple Factor Voltage [mV] rms |
< 50 |
| No. of Charging Ports |
2 + S |
| Adjustable Charging Programs No. |
1, 2, 4 |
| Battery Regeneration twice a week |
yes |
| Protection against wrong Polarization, Short-Circuit, Back Discharge |
yes |
| Parallel / Floating Operation for simultaneous Supply of Consumers |
yes |
| Compensation of the Voltage Loss on the Charging Cables |
yes |
| Charging Current Distributor |
2-fold |
| Silent Run Function |
yes |
| Temperature-controlled, Speed-controlled Fan |
yes |
| Connection of Remote Indicator, Remote Control and Operation Remote Indicator |
yes |
| Fitting Position of the Unit |
any |
| Temperature Range [°C] |
-20 to +50 |
| Degree of Protection / Protection Class |
I / IP 21 |
| Dimensions (WxHxD) [mm] |
160 x 71 x 305 (¹ |
| Weight [g] |
2500 |
| Ambient Conditions, Humidity of Air |
max. 95% RH, No condensation |
| Safety Requirements |
EN 60335-2-29 |
(1 Dimensions incl. mounting flanges, without connections
|
| Mark of Conformity |
CE |
| Scope of Delivery |
Charger, mains cable, manual |
| Recommendable Accessories |
temperature sensor order no. 2001 remote control S order no. 2075 remote indicator IP67 order no. 2081
remote distributor for chargers
order no. 2074 |
| Execution with humidity-proof electronic system, order No. 13122 available |
