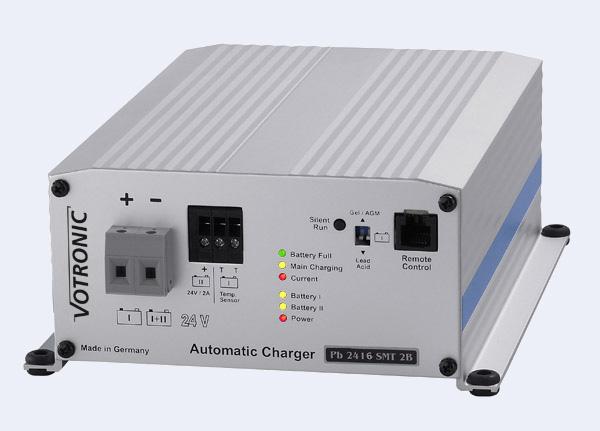

Device Type Pb 2416 SMT 2B
Charging Capacity [V]/[A] 24 / 16
Nominal Voltage (AC)  [V] 230
Operating Voltage Range (AC) [V] 190 - 265 (Full Charging Capacity)
Power Input (AC) max. [W] 530
Sinusoidal Power Factor Correction
(CosPhi = 1)
yes
Nominal Battery Voltage (DC) [V] 24
Battery Capacity [Ah] 40 - 200
Charging Current [A] 16
Auxiliary Charging Port "S" [A] 2
Characteristic Line of Charging IU1oU2
Battery Type adjustable acid, gel, AGM
Voltage Limitation during all Charging Modes and Programs to [V] 29.8
Ripple Factor Voltage [mV] rms < 60
No. of Charging Ports 1 + S
Adjustable Charging Programs No. 1, 2, 4
Battery Regeneration twice a week yes
Protection against wrong Polarization, Short-Circuit, Back Discharge yes
Parallel / Floating Operation for simultaneous Supply of Consumers yes
Compensation of the Voltage Loss on the Charging Cables yes
Silent Run Function yes
Temperature-controlled, Speed-controlled Fan yes
Connection of Remote Indicator, Remote Control and Operation Remote Indicator yes
Fitting Position of the Unit any
Temperature Range [°C] -20 to +50
Degree of Protection / Protection Class I / IP 21
Dimensions (WxHxD)  [mm] 138 x 72 x 210 (?
Weight [g] 1400
Ambient Conditions, Humidity of Air max. 95% RH, No condensation
Safety Requirements EN 60335-2-29
(1 Dimensions incl. mounting flanges, without connections
Mark of Conformity
CE
Scope of Delivery Charger, mains cable, manual
Recommendable Accessories
temperature sensor order No. 2001
remote control S order No. 2075
remote indicator IP67 order No. 2081
remote distributor for chargers
order No. 2074
Execution with humidity-proof electronic system, order No. 16235 available
