Charging Program 1 „Gel“ for Gel Batteries, Characteristic Line IU1oU2
Adapted to closed, gas-tight gel/dryfit batteries with determined electrolyte, which are generally requiring a higher charging voltage level and longer dwell times U1 to achieve short charging times with particularly high capacity storage and to avoid total discharge. Also recommended for EXIDE MAXXIMA, high-current battery in AGM filament technology. |
Charging Program 2 "AGM" for AGM/Fleece Batteries, Characteristic LineIU1oU2 Adapted to charging of closed, gas-tight AGM (absorbet glass mat) batteries and batteries in lead-fleece technology requiring a particularly high level U1 with adapted dwell times for full charging and after that a moderate level U2 for conservation of charge (round cell and plate technology). |
Charging Program 4 „UNIVERSAL“ for Lead, Acid/Lead-Acid Batteries, Characteristic Line IU1oU2oU3 Universal program for charging and conservation of charge of acid batteries in vehicles(mixed operation mobile/stationary). Still offers short charging times, good charging factor and good acid mixing with average level U1 for open and closed, low-maintenance, maintenance-free standard, drive, lighting, solar and heavy-duty batteries. |
3 Main charging ports Designed for boats and intervention vehicles. Charging Options: 2 Supply batteries and 1 starter battery or 1 Supply battery and 2 starter batteries or 3 Supply batteries or 3 starter batteries
- Charging programs No. 1, 2 and 4 (gel, AGM, acid) adjustable to the battery type
- Integrated charging current distributor with 3 main charging ports, each with max. current and output capacity for short charging times
- For 1 or 2 starter batteries an own charging program can be adjusted at the integrated charging current distributor
- Outstanding charging technology
- The charging voltage is exempt from peaks, and it is controlled in such a way, that overcharging is excluded
- All-automatic continuous operation for permanent readiness for use of the batteries
- Precise temperature compensation of the battery (temperature sensor, order No. 2001, is required)
- Automatic battery regeneration in case of extended stop periods twice a week
- Compensation of the voltage loss on the charging cables ensuring exact observation of the charging voltage rates
- Intelligent microprocessor control observing the simultaneous supply of consumers
- Separation of the batteries in case of power failure, overheating, incorrect behaviour (safety relay for each charging port)
- Adjustable silent run function (reduction at night)
- Power pack function allows continued operation of the consumers and preservation of data, such as in case of battery replacement
- Integrated charging current distributor with 2 main charging ports, each with max. current and output capacity
- Charging current distributor can be switched to an own charging program for the starter battery
- If required, the starter battery can also be charged with full charging current (short stop period of the vehicle)
- 4 Battery capacity rates can be adjusted (12 charging programs in total)
- charging current distributors with voltage loss. Inputs for sensor (sense) lines, which can be optionally used in case of charging cables in overlength and in case of external diode
- The mains/charging capacity can be reduced in case of low capacity or restricted power supply (power limit function)
| |
Device Type |

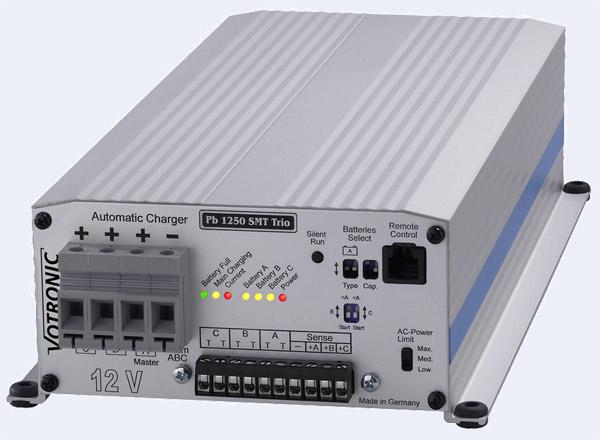

Pb 1250 SMT Trio |
Charging Capacity [V]/[A] |
12 / 50 |
Nominal Voltage (AC) [V] |
230 |
Operating Voltage Range (AC) [V] |
190 - 265 (Full Charging Capacity) |
Power Input (AC) max. [W] |
840 |
Sinusoidal Power Factor Correction (CosPhi = 1) |
yes |
Nominal Battery Voltage (DC) [V] |
12 |
Battery Capacity [Ah] |
88 - 550 |
Charging Current [A] |
50 |
Characteristic Line of Charging |
IU1oU2 |
Battery Type adjustable |
acid, gel, AGM |
Voltage Limitation during all Charging Modes and Programs to [V] |
14.9 |
Ripple Factor Voltage [mV] rms |
< 40 |
No. of Charging Ports |
3 |
Adjustable Charging Programs No. |
1, 2, 4 |
Battery Regeneration twice a week |
yes |
Protection against wrong Polarization, Short-Circuit, Back Discharge |
yes |
Parallel / Floating Operation for simultaneous Supply of Consumers |
yes |
Compensation of the Voltage Loss on the Charging Cables |
yes |
Charging Current Distributor |
yes |
Silent Run Function |
yes |
Temperature-controlled, Speed-controlled Fan |
yes |
Connection of Remote Indicator, Remote Control and Operation Remote Indicator |
yes |
Fitting Position of the Unit |
any |
Temperature Range [°C] |
-20 to +45 |
Degree of Protection / Protection Class |
I / IP 21 |
Dimensions (WxHxD) [mm] |
138 x 72 x 310 (¹ |
Weight [g] |
2400 |
Ambient Conditions, Humidity of Air |
max. 95% RH, No condensation |
Safety Requirements |
EN 60335-2-29 |
(1 Dimensions incl. mounting flanges, without connections
|
Mark of Conformity |
CE |
Scope of Delivery |
Charger, mains cable, manual |
Recommendable Accessories |
temperature sensor order no. 2001 remote control S oder no. 2075 remote indicator IP67 order no. 2081 remote distributor for chargers order no. 2074 |
Execution with humidity-proof electronic system, order No. 13138 available |
