Victron Skylla - Tg acculader 24V/30A GMDSS (excl. Panel )

Victron Skylla - Tg acculader 24V/30A GMDSS (excl. Panel )

Inclusief BTW (21%) Verzendinformatie*

Victron Skylla - Tg acculader 24V/30A GMDSS (excl. Panel )
In de rubriek Victron vindt u de producten en prijzen van Victron. Een selectie Victron producten die u kunt kopen zoals een omvormer, omvormer lader, acculader, scheidingstransformator, dc-dc converter, transfer switch, lynx en dc distributie, zekeringen, ve net, remote paneel, esp, data kabel, interface, accu monitor, batterij isolator, walstroom kabel, solar laadregelaar, zonnepaneel, accu, agm, gel, grid inverter, lithium accu. Volledige fabrieksgarantie op de Victron producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Omvormer Lader en Acculader en Omvormer zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Victron Skylla - Tg acculader 24V/30A GMDSS (excl. Panel ).

Specificaties

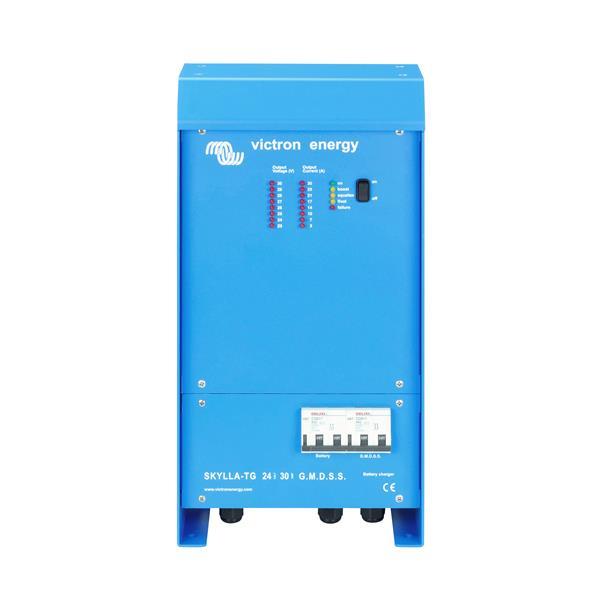

Victron Energy Skylla-TG Battery Charger 24V/30A GMDSS (exc. Panel)

The Skylla TG has proven itself to be an excellent battery charger and power supply for GMDSS applications. However, when using a standard Skylla charger, additional equipment is needed to perform the monitoring and alarm functions required for GMDSS.

Installation made easy: the Skylla GMDSS - The Victron Skylla GMDSS charger has been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight wire UTP cable connects the charger to the panel.

No adjustments needed - The whole system is ‘click and go’: the panels are pre-programmed for GMDSS functionality. A simple, intuitive menu allows changing of settings if required.

Battery time to go - The Skylla GMDSS charger has a built-in battery controller. The capacity of the battery is fully monitored so the panel can even indicate the ’time to go’ in case of a power supply black out.

Perfect charger for any type of battery - Charge voltage can be precisely adjusted to suit any VRLA or flooded battery system.

Features:
  • Features include: Temperature sensor, use as a power supply, forced cooling
  • Input voltage / input voltage range: 230 V AC / 90 - 265 V AC
  • Frequency: 45-65 Hz / Power factor: 1
  • Charge voltage 'absorption' / 'float': 28.5 V DC / 26.5 V DC
  • Charge current: 30 A
  • Charge characteristic: IUoUo (three step)
  • Protection: output short circuit, battery reverse polarity detection, battery voltage too high, temperature too high
  • Operating temp. range -20 to 60°C (0 - 140°F)
  • Humidity (non condensing) max 95%
  • Protection category IP 21
