Victron Cyrix - I 24/48V - 400A Intelligente accuscheider
Victron Cyrix - I 24/48V - 400A Intelligente accuscheider
Inclusief BTW (21%) Verzendinformatie*
| Victron Cyrix - I 24/48V - 400A Intelligente accuscheider |
 |
| In de rubriek Victron vindt u de producten en prijzen van Victron. Een selectie Victron producten die u kunt kopen zoals een omvormer, omvormer lader, acculader, scheidingstransformator, dc-dc converter, transfer switch, lynx en dc distributie, zekeringen, ve net, remote paneel, esp, data kabel, interface, accu monitor, batterij isolator, walstroom kabel, solar laadregelaar, zonnepaneel, accu, agm, gel, grid inverter, lithium accu. Volledige fabrieksgarantie op de Victron producten. Verzenden of afhalen is mogelijk. |
Tips en adviesDe gerelateerde producten in de rubrieken Omvormer Lader en Acculader en Omvormer zijn voor u mogelijk ook interessant. |
ContactHeeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Victron Cyrix - I 24/48V - 400A Intelligente accuscheider. |
Specificaties

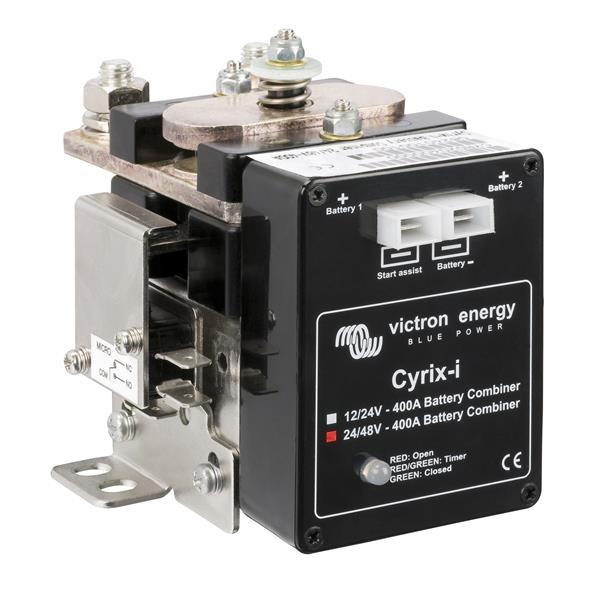

Victron Energy Cyrix-i 24/48V - 400A Intelligent battery combiner The Cyrix-i battery combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a preset voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix-i battery combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased. New: intelligent battery monitoring to prevent unwanted switching - Some battery combiners will disconnect a battery in case of a short but high amperage load. A battery combiner also may fail to connect a large but discharged battery bank because the DC voltage immediately drops below the disengage value once the batteries are connected. The software of the Cyrix-i does more than simply connect and disconnect based on battery voltage and with a fixed time delay. The Cyrix-i looks at the general trend (voltage increasing or decreasing) and reverses a previous action only if the trend has reversed during a certain period of time. The time delay depends on the voltage deviation from the trend. In addition, four switch timing profiles can be chosen. 12/24V and 24/48V auto ranging - The Cyrix-i automatically detects system voltage. No voltage loss - Cyrix battery combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased. Prioritising the starter battery - In a typical setup the alternator is directly connected to the starter battery. The accessory battery, and possiblyalso a bow thruster and other batteries are each connected to the starter battery with Cyrix battery combiners. When a Cyrix senses that the starter battery has reached the connect voltage it will engage, to allow for parallel charging of the other batteries. Bidirectional voltage sensing and power supply from both batteries - The Cyrix senses the voltage of both connected batteries. It will therefore also engage if for example the accessory battery is being charged by a battery charger. The Cyrix-i has a dual power supply. It will therefore also close if the voltage on one battery is too low to operate the Cyrix. In order to prevent unexpected operation during installation or when one battery has been disconnected, the Cyrix-i will not close if the voltage on one of the two battery connections is lower than 2V (12V battery), or 4V (24V battery) or 8V (48V battery). Parallel connection in case of emergency - The Cyrix can also be engaged with a push button (Cyrix remains engaged during 30s) or a switch to connect batteries in parallel manually. This is especially useful in case of emergency when the starter battery is discharged or damaged. |
