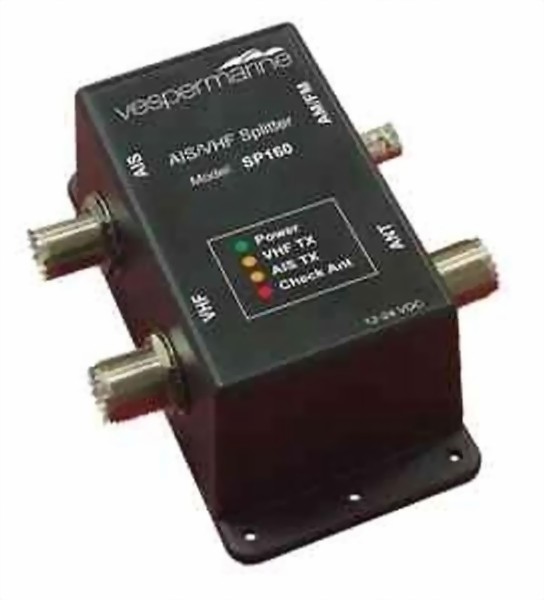

Vesper Marine SP160 Ais VHF antenne splitter

Vesper Marine SP160 Ais VHF antenne splitter

Product uit assortiment

Vesper Marine SP160 Ais VHF antenne splitter
In de rubriek Vesper Marine vindt u de producten en prijzen van Vesper Marine. Een selectie Vesper Marine producten die u kunt kopen zoals een ais display, ais receiver, ais transponder, watchmate. Volledige fabrieksgarantie op de Vesper Marine producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken AIS en AIS Toebehoren en Radar Plotter zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Vesper Marine SP160 Ais VHF antenne splitter.

Specificaties

Designed to work with any Class B AIS receiver or transponder with unique integration features for the AISWatchMate Transponder.

To simplify installation you can share an existing VHF antenna by using this splitter. The unit removes the need for a separate VHF antenna for an AIS receiver or transponder and allows a single antenna to be shared with a VHF radio.

This is an excellent solution when it is difficult to install an additional antenna or you wish to share an existing VHF antenna and maximize your AIS range.

This Vesper Marine splitter is specifically designed for use with both AIS receivers and transponders.

All other AIS splitters introduce significant signal loss, but this unique Vesper Marine splitter is the only one that provides signal gain - improving AIS reception and increasing range. This is because the Vesper Marine splitter has a built-in low noise amplifier. This is especially useful as more and more lower power Class B AIS transponders and SART's are installed.

In addition to the amplification provided by this splitter, when used with your existing antenna you can optimize the range of your AIS transponder because the antenna is also mounted as high as possible.

Frequency Range 156MHz to 163MHz Operating temperature -25°C to +55°C (-13°F to 131°F) Environmental Watertight (USCG CFR-46, IPx7) Power Supply 12 - 24 VDC, <0.8W nominal Overall Size (incl connectors) 135mm Long x 107 Wide x 56 Deep (5 5/16” x 4 1/4“ x 2 1/4”) Maximum VHF power 25W Maximum AIS power 12.5W VHF & AIS Connectors SO-239 (UHF) AM / FM Connector BNC, optional cable available BNC to Motorola plug Insertion Loss VHF RX 1.5dB / VHF TX 1dB / AIS TX 1dB AIS Receive Gain 12dB AIS Sensitivity -119 dBm, 6dB improvement
