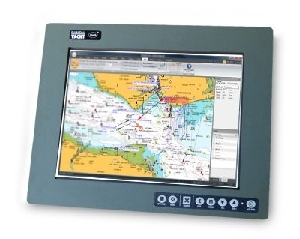

Digital Yacht TOUCH SYSTEM 12 INCH MONITOR 12V

12” RESISTIVE TOUCH SCREEN LCD MONITOR Slim, light and reliable. 1024 x 768 pixel resolution, ideal for displaying complex graphics and high definition images. High brightness and ultra-wide viewing angle with anti-glare features. All kinds of touch input devices can activate the screen, including fingers, fingernails, styluses, gloved hands, and credit cards. Plug and play compatibility Advanced OSD (On Screen Display) controls for picture quality adjustment Extra On-Screen buttons to enable easy power control of the CPU, CPU restart and audio silencing. Offers all standard video interfaces for input sources from PC or multimedia system: VGA-in, DVI, S-video Tested and complies with FCC limits for a Class A digital device. Panel mounting, wall mounting and desktop stand options



SPECIFICATIONS Dimensions - 340 x 260 x 46.5mm Construction - Heavy-duty chassis Net weight - 3.5 kgs Power - 12v DC Brightness - 400 nits Control - OSD (On Screen Display) control pad on front side Operating Temp. Range = -10°C ~ 55°C Relative Humidity - 20% ~ 90% non-condensing Note - Not waterproof so must be mounted below decks Approvals Tested and complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. 8. CPU PWR 7. CPU Reset 6. Silence 5. Exit 4. Menu (turns on/off the On Screen Display main menu or press to activate selected items) 3. SEL - 2. SEL + (to scroll up the menu or increase the value of a selected item) 1. LCD Power button + Power LED 7. Power. 6. Processor Control 5. DVI port 4. VGA 3. Video 2. S-Video 1. T/S
