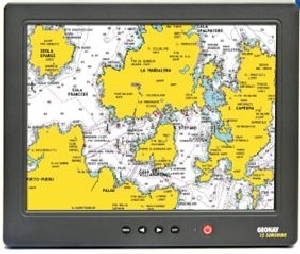

Geonav 15 Sunshine TFT-monitor

GEONAV 15 SUNSHINE is the new GEONAV monitor designed to display the video signal coming from any device compatible with svga, vga, XGA, PAL, SECAM, NTSC. Equipped with a TFT 15” color LCD, sunlight visible, GEONAV 15 SUNSHINE guarantees perfect image quality under all environmental conditions, even under the sun. Featuring elegant design, both flush and bracket mounting, GEONAV 15 SUNSHINE is the ideal solution for displaying images on all types of boats. Your GEONAV 15 SUNSHINE is the ideal companion of GEONAV MULTY or your GEONAV 4C XS; in combination, they create an advanced electronic charting system.



GEONAV 15 SUNSHINE can also be used together with any chart plotter featuring VGA output. Moreover, its compatibility with PAL/NTSC standards makes it suitable for displaying images coming from video cameras, DVD, video recorders or digital cameras. GEONAV 15 SUNSHINE belongs to the GEONAV product line and is guaranteed and supported worldwide by the GEONAV sales network.



GENERAL CHARACTERISTICS Display: color LCD, 15” TFT, sunlight visible Resolution: XGA up to 1600x1200 pixels Backlight level Bracket or panel mounting Adjustment by built-in menu (OSD) and 5 push-buttons located on the unit’s front bezel Quick adjustment for brightness and contrast level Size (LxHxW): 365x305x80 mm Weight: 2.450 kg EMC certified according to IEC60945 CE mark ELECTRICAL AND OPERATING CHARACTERISTICS r supply: 9 to 36 VDC Power consumption: max. 38 W Protection against overload by fuse on the power supplycable Operating temperature: 0°C to +50°C Storage temperature: -20°C to +60°C Humidity: max. 95% at 40°C Waterproof: IP56 INGRESS Analogical graphics:VGA-SVGA-XGA 75 Hz SXGA-UXGA 60 Hz 0.7 V. Plug & Play compatible DDC1/2B Video: CVBS multistandard (PAL-SACAM-NTSC) EXIT Resolution: 640x480-800x600-1024x768-1280x768-1280x1024-1600x1024-1600x1200- 18/24/48 Bit.4:3/19:9



ACCESSORIES Bracket for detachable installation Spacers for panel mounting with rear fastening Power supply cable VGA video cable Composite video cable User and installation guide Protection cap
