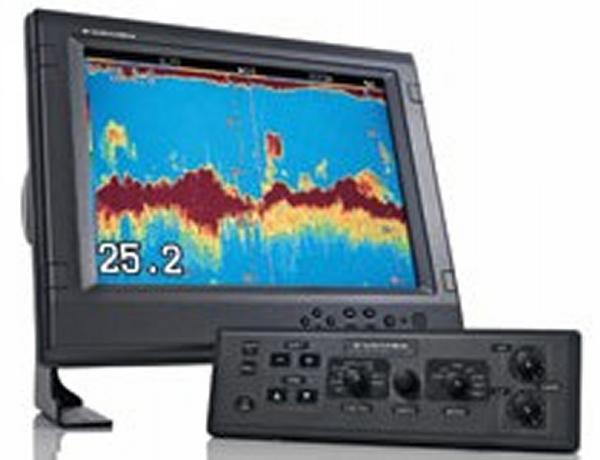

FCV1200L ECHOSOUNDER 12-32VDC CONTROL & PROCESSOR UNITS (NO DISPLAY) (NO HULL UNIT)# The FCV1200BB is a powerful, dual-frequency black box fish finder, designed for both commercial and sport fishing boats, 35-65-plus feet. The FCV1200BB comes with an easily set 1kW, 2kW or 3kW transmitter. It has a Furuno Free Synthesizer (FFS) transceiver which allows easy selection of a broad range of operating frequencies (15/28/38/50/88/107/200kHz).
You have a choice of display options with the FCV1200BB. The FCV1200BB gives you the flexibility to utilize almost any CRT or LCD flat panel display,such as a Furuno 12", 15" or greater marine monitor.
Standard Features
- Transceiver "Auto-matching" of outputs to Furuno transducers
- Furuno Free Synthesizer (FFS) Transceiver allows use of easily selected operating frequencies (15/28/38/50/88/107/200kHz)
- Display may be set in a Portrait (Vertical) or Landscape (Horizontal) Mode (1)
- 8 or 16 echo colors with blue, light blue, dark blue, black or white background
- 8 range scales, may be custom set anywhere from 16 to 6,000 feet (52,000 m.)
- Range shift from 0 to 6000 feet (02,000 m.) maximum scale of 12,000 feet (4,000 m.)
- Independent Low and High frequency range selection in the Dual Frequency mode
- Automatic range shifting mode for continuous bottom acquisition and tracking
- System may be scaled in feet, fathoms or meters
- Provision for Optional second, remote "Black Box" monitor with second control unit
- RGB Monitor output port provided, Optional IF8000 interface unit kit required
- TLL output data with elapsed time display, beginning from mark initiation *
- Training and Showroom Demonstration mode
- Plus vessel draft offset menu, navigation data on screen and more *
Advanced Fish Detection Features
- Use of LF or HF only, both LF and HF simultaneously, LF or HF zoom
or select from 1 of 2 Customized user preset modes
- A-Scope screen for rapid help in fish species identification
- Bottom hardness discrimination, with menu adjustable bottom width
- Tri-screen frequency mix display, LF only, HF only and LF/HF Mix Mode
- Both LF and HF preset clutter controls
- Both LF and HF preset TVG controls, menu set for TVG level and effective distance
- Both LF and HF preset Noise Limiters, menu set to eliminate acoustic interference
- White Line display
- Both visual and audible, adjustable bottom, fish or temperature zone alarm *
- VRM (Horizontal line) and Event Marker (Vertical line)
- Water temperature graph and numerical display, graph color and calibration menu set (2)
Shipping Information
Power Requirements
- 12 or 24 VDC, 120 Watts
- Monitor Unit to be determined
|
