Digital Yacht GS50 PILOT ML40 LINEAR DRIVE 24V

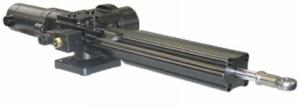

The ML40PLUS combines a hydraulic cylinder, pump, motor,clutch and reservoir in one powerfuland compact unit. To operate the clutch is engaged and the cylinder extends and retracts by means of reversing the motor polarity. Integral relief valves protect the unit and its mounting from being overloaded. Anti-cavitation valves are also incorporated to allow full stroke speeds of up to 2 seconds when back-driven by the helm. Designed for ease of servicing with a motor that can be removed from the unit without affecting the hydraulic circuit. A full range of spares, seal kits and servicing tools are available. The ML40PLUS is supplied pre-filled and ready to install.



Ruggedly designed specifically for the marine auto-pilot market where they are widely used on sailboats and power craft with displacement or fast planing hulls. They are ideal where space is limited as there is no separate pipe-work or reservoirs to fit. The unit can be mounted in any attitude. Features Ease of installation. Low profile Low power consumption. 2 speed options. Integral relief valves. Low maintenance. User serviceable. Quick release mounting. 12 or 24v DC option. Service kits available. Low back-drive Fully marinised Performance Maximum thrust (intermittent) 675 kg Hard over time nominal ML40PLUS 10 13 secHard over time nominal Temperature rating minimum -20ºc Temperature rating maximum +65ºc Relief valve setting 62 bar Back-drive at 12 sec Hard-over 7kg Electrical Motor voltage nominal 12 or 24v DC Motor power 100 watt Max current 12v 25% duty 22.5 A Max current 24v 25% duty 11.2 A Rotation Reversing Protection IP44 Connection 1m 2 Core Flying Lead Ignition protection BS EN 28846:1993 Coil power continuous 12 watt Connection DIN 43650 Recommended oil Mineral based hydraulic ISO VG10 Materials Body Aluminium BS 1490 Piston rod Chrome Plated Stainless Steel Seals Nitrile & PTFE Body Protection SP270 Weight 9.0 kg
