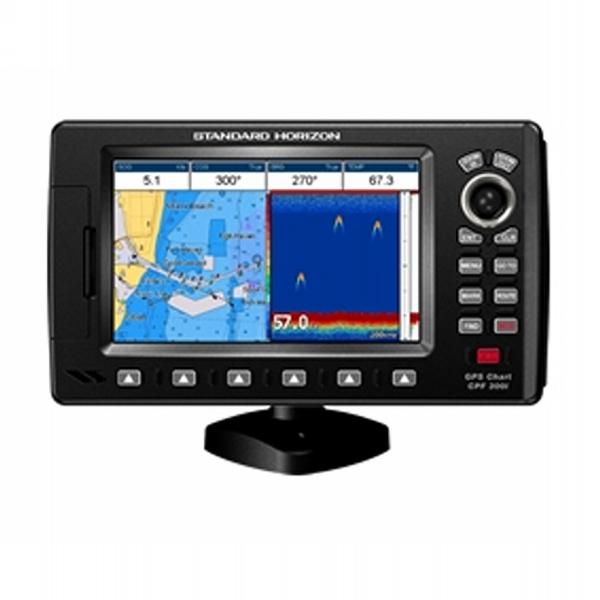

Standard Horizon Cpf300I Plotter Combo zonder Transducer

The internal dual frequency (50 and 200kHz) Fish Finder's advanced filtering eliminates unwanted noise and sharpens return echos for enhanced seperation and detection. Transducer ID™ allows the CPF300i to query the transducer (sold separately) to determine its perfromance characteristics. Frequency, beam pattern and other unique transducer characteristics are sent to the Internal fish finder. This data allows the fish finder to fine tune itself to match the transducer which optimizes overall system performance. No matter what the conditions, you will be able to fine tune your fishing rather than the fish finder. Note: Transducer ID™ is a registered trademark of AIRMAR Technology Corporation, Milford.

The CPF300i has a 50 Channel GPS and antenna integrated into the rear case making it perfect for dash mount installations. For flush mounting the CPF300i has an dedicated connections for an optional GPS antenna supplied with 30 feet of routing cable.

The CPF300i Boast a 7-inch, high defination 800 x 480 resultion TFT Display. Nothing beats the detail and impact of a color display. Featuring cutting edge transflective screen technology, the result is a display that delivers un-compromised bright, vivid color chart detail in the toughest of applications--direct sunlight.

Radar: The CPF300i is compatible to Sitex radar models; MDS-1 (2KW Dome), MDS-8 (2KW Dome), MDS-9 (4K Dome), MDS-10-4 (Open array), MDS-10-5 (Open array). To increase safe navigation, connect an optional Flux Gate Compass to the CPF300i and show radar overlaid on top of the chart page with award winning C-Map Max cargraphy, available as an option. Automatic Identification System: Connnecting an option AIS ) receiver to the CPF300i to show targets from Commercial ships required to transmit their location on the chart page. Move the cursor over a target to display target information including, SOG, COG, Closest Point of Approach, and Time to Closest Point of Approach.

A single video input allows connection to a color video camera (NTSC or PAL), any DVD, Night Vision camera system or even video from a satellite reciever. The video can be displayed on the whole screen or in a movable picture in picuture window.

The keys under the LCD are factory preset to allow quick selection of Video , Navigation, Highway, Celestial, Chart and Waypoint list. These key however can be customized to to allow quick selection of ChartCompass, ChartHighway, GPS Status, NMEA data display and with the optional black box fish finder or Radar connected direct access to these pages also.

Using a GPS Chart Plotter has never been so easy! The CPF300i has dedicated MARK and ROUTE keys that allows the creation of a single waypoint or creation of a route right on the Chart Page. Want to navigate to one of the marks or to a Route, the GOTO key allows you to do so directly on the chart or via the popup menu when the key is pressed.

Supplied with a swivel mount bracket allowing the CPF300i to be rotated 360 degrees (left or right) for optimal viewing. In addition, flush mounting hardware is included, no optional flush mount kit needed!

The CPF300i GPS Chart Plotter has the capability to be connected to STANDARD HORIZON VHF Fixed mounted radios with DSC polling capability. This is done by simply connecting 3 wires between the CPF300i and the VHF. Connecting the products together allow you to securely and totally privately poll and display another vessels position on the display of the CPF300i. To take this one step further, the CPF300i has a DSC Call directory that logs the position of the polled vessels and also the position of a vessel that has transmitted a DSC Distress call. STANDARD HORIZON pioneered this function, leading the industry with innovative features and functionality.

The CPF300i was designed from the ground up to take the punishment of the marine environment and is "BACKED BY A 3 YEAR WATERPROOF WARRANTY!"
