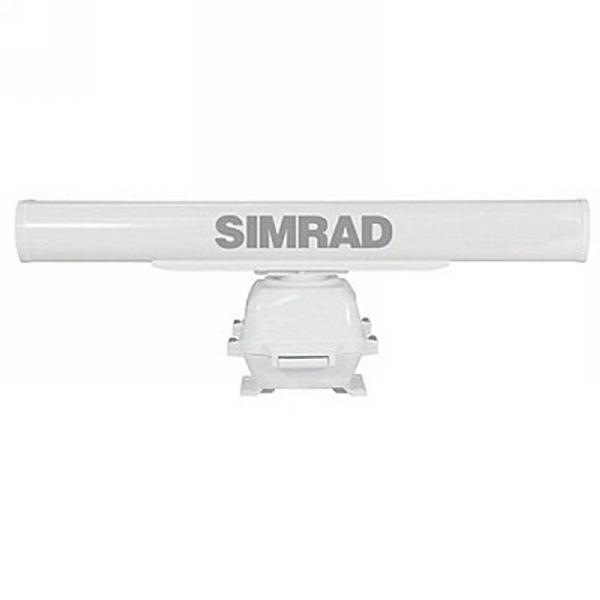

Simrad Tx06S 4Ft 6Kw Open Array Pack voor Nx/Gb40

Simrad Tx06S 4Ft 6Kw Open Array Pack voor Nx/Gb40

BTW (21%)
Product uit assortiment

Simrad Tx06S 4Ft 6Kw Open Array Pack voor Nx/Gb40
In de rubriek Simrad vindt u de producten en prijzen van Simrad. Een selectie Simrad producten die u kunt kopen zoals een radar, kaartplotter, potter, stuurautomaat, autopilot, yachting, ais, marifoon, navigatie apparatuur, nmea 2000, transducer. Volledige fabrieksgarantie op de Simrad producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Simrad Tx06S 4Ft 6Kw Open Array Pack voor Nx/Gb40.

Specificaties

SIMRAD TX06S 4FT 6KW OPEN ARRAY PACK FOR NX/GB40

The 6kW HD open array digital radar provides boaters with exceptional detection of small or distant targets using our advanced Digital Signal Processing technology. Screen clutter in any weather is virtually eliminated, allowing a clear, accurate and easy to interpret image. The 6kW open array is ideal for motorboats 40ft in length and above.

Key Features
  • Powerful 4 Foot Antenna
  • Advanced Digital Signal Processing
  • Chart Overlay Option
  • Choice Of Colour Palettes
  • Automatic Clarity
  • MARPA Target Tracking
  • Dual Guard Zones
  • 64nm Range
  • Waterproof (IPx6)
  • Ethernet Connectivity

Powerful 4 Foot Antenna

Advanced Digital Signal Processing

See targets more clearly and reject clutter with 10-bit digital radar video sampling and Sensitivity Time Control.

Chart Overlay Option

Interpret targets instantly in relation to chart information for unrivalled navigation. (Requires input from a heading sensor).

Choice Of Colour Palettes

Choose a colour to suit both the lighting conditions and your personal preference.

Automatic Clarity

Proven Harbour and Offshore auto modes offer a simple solution that requires no tuning.

MARPA Target Tracking

Track up to 10 targets (requires a heading sensor).

Dual Guard Zones

Protect yourself from more angles.

64nm Range

Ideal for offshore use as well as inshore.

Waterproof (IPx6)

Certified to IPX6 standard.

Ethernet Connectivity

Connect to an NSS, NSE or NSO navigation system with ease.

Technical/Environmental Product Length [mm] 1285
Product Width [mm] 344 Product Height [mm] 432
Weight [kg] 24 Product Width 344 mm / 13.5 in
Product Height 432 mm / 17 in Product Weight 24 kg / 52.9 lbs Power Power Consumption 120 W (Max)
Power Supply (Supply Voltage) 10.8 V - 42 V Radar Antenna Distance Range [nm] 64
Antenna Horizontal Beam Width [deg] 1.8 ° Antenna Output Power [kW] 6
Antenna Receiver Noise Figure [dB] 6 Antenna Rotation Speed 27
