Specificaties
Available in 8-inch and 12-inch versions, the new Simrad NSE multifunction display brings professional-grade navigation electronics to the leisure and light commercial user.

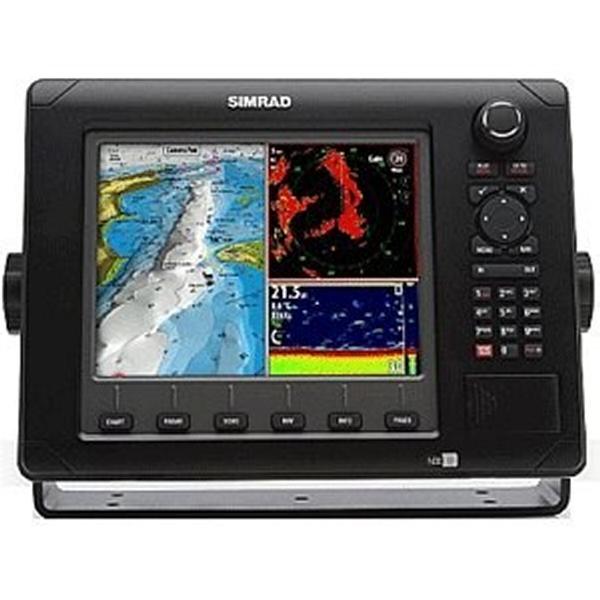

Built to withstand the toughest conditions, the Simrad NSE8 is a stunningly fast, full-function chartplotter right out of the box, supplied pre-loaded with Navionics Platinum (ex-USA) or HD Insight (USA only) cartography. But that's just the beginning, as the Simrad NSE8 offers owners the opportunity to add over time a wide range of modules and transducers that will extend its capabilities to include functioning as a best-in-class echo sounder / fishfinder, radar display (both HD and broadband), AIS transceiver, autopilot control, engine performance display and much more, all accessible from a single screen (additional screens can be added as required) and displayed in the format and combination of your choice. And it's all easy to install thanks to its SimNet / NMEA2000 compatibility – just plug in the new unit and the NSE will recognise and configure it automatically.
DISPLAY
| Display Resolution
| 800 x 600 (H x W)
| Display Type
| 8 inch Color TFT LCD
| Display Modes
| up, Course-up*, North-up*, Relative Motion (*Heading input required) (H x W)
| Multilanguage Display
| Yes
NETWORKING / CONNECTORS
| NMEA 0183 Interface
| Input: GLL, GGA, RMC, RMB, GSA, GSV, APB, BWC, DBT, DPT, MTW, VLW, VHW, HDG
| NMEA Output
| GGA, GLL, GSA, GSV, VTG, ZDA, AAM, APB, BOD, BWC, BWR, RMC, RMB, XTE, DBT, DPT,MTW, VLW,VHW, HDG, MWV,TLL, TTM |
TECHNICAL / ENVIRONMENTAL
| Housing
| Die Cast Aluminum Rear housing & Front panel. Plastic front bezel
| Waterproof Standard
| IPx7
| Width
| 285 mm \ 11.2 in
| Height
| 212 mm \ 8.3 in
| Depth
| 122.7 mm \ 4.8 in |
POWER
| Power Supply
| 12.0 VDC-24.0 VDC (9.0 - 34.0 VDC Min-Max) vDC
| Power Consumption
| 21.6W or 1.8A @ 12.0 VDC or 21.6W or 0.9A @ 24VDC |
OTHER
| CPU (Central Processing Unit)
| 1.6 GHz
| Languages
| English (UK), English (US), German, French, Spanish, Italian, Portuguese, Croatian, Finnish, Icelandic, Dutch,Norwegian, Polish, Swedish, Slovenian, Russian, Ukrainian, Bulgarian
| Memory Size
| RAM: 512 MB / Hard Drive: 80 GB
| Operating Temperature
| -15 Deg C to +55 Deg C (+5 Deg F to +131 Deg F) |
|
|
