Simrad Nais300M klasse B Ais Met Simnet Interface

Simrad Nais300M klasse B Ais Met Simnet Interface

BTW (21%)
Product uit assortiment

Simrad Nais300M klasse B Ais Met Simnet Interface
In de rubriek Simrad vindt u de producten en prijzen van Simrad. Een selectie Simrad producten die u kunt kopen zoals een radar, kaartplotter, potter, stuurautomaat, autopilot, yachting, ais, marifoon, navigatie apparatuur, nmea 2000, transducer. Volledige fabrieksgarantie op de Simrad producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Simrad Nais300M klasse B Ais Met Simnet Interface.

Specificaties

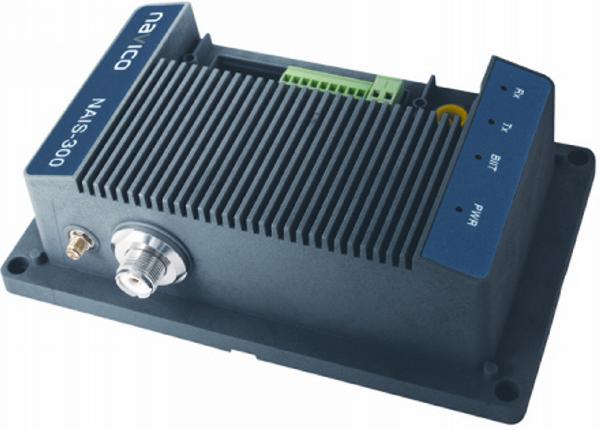

The NAIS-300 is a Class B Transponder that’s purpose is to transmit the position and other information about your vessel, to other AIS equipped vessels. It is housed in a rugged waterproof enclosure to withstand the rigors of the marine environment.

 The NAIS-300 uses a sophisticated automatic digital time sharing technology which enables the exchange of static information like; MMSI (Maritime Mobile Service Identifier) Number, Vessel’s Name, Call Sign and Type. Also dynamic data like; Position, Course, Distance and more, from ship to ship, and from ship to shore based traffic stations. When connected to a compatible chart plotter, it will provide a representation of the position and movements of all AIS equipped vessels within VHF range.

The advantages of the NAIS-300 are:

 Increased awareness of the current shipping situation within your VHF range through the exchange of data between vessels.

 Improving traffic management in busy shipping lanes through exchanging information between vessels and shore based traffic stations.

 Reporting information automatically in shipping areas where it is mandatory.

 GPS / NAVIGATION

GPS Antenna Type external
GPS Receiver Channels 16 channels

NETWORKING / CONNECTORS

NMEA 0183 Interface NMEA0183 in for configuration and testing only
NMEA Output VDM, VDO, RMC, ALR
Connectors SimNet, Screw terminal

COMMUNICATIONS

Transmitter Power Output 2 W
Sensitivity < -107 dBm for 20% PER microV

TECHNICAL / ENVIRONMENTAL

Built-in Backup Memory Yes
Waterproof Standard IP67
Width 130 mm 5.1 in
Height 73.5 mm 2.9 in
Length 210 mm 8.3 in
Weight 0.65 kg 1.43 lbs

POWER

Power Supply 10.8 - 15.6 VDC vDC
Power Supply: Input Current 0.5A

OTHER

Compass Safe Distance 300 mm 11.8 in
Configuration From PC Yes
