Art.Nr.:

Simrad IS20 Wind

Simrad IS20 Wind

BTW (21%)
Product uit assortiment

Simrad IS20 Wind
In de rubriek Simrad vindt u de producten en prijzen van Simrad. Een selectie Simrad producten die u kunt kopen zoals een radar, kaartplotter, potter, stuurautomaat, autopilot, yachting, ais, marifoon, navigatie apparatuur, nmea 2000, transducer. Volledige fabrieksgarantie op de Simrad producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Simrad IS20 Wind .

Specificaties

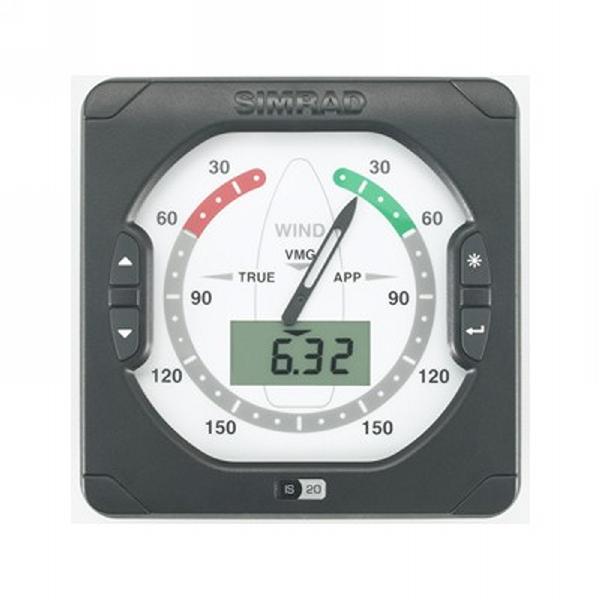

SIMRAD IS20 WIND DISPLAY ONLY

Display only supplied with 30cm SimNet cable

The IS20 Wind diplay combines a classic easy-to-read needle pointer display with an high contrast LCD readout, featuring simple 'daisy chain' connectivity.

Key Features
  • Large Analogue Display
  • High Contrast LCD Window
  • 4 Control Buttons
  • Apparent/True Wind Selection
  • Simnet Intelligent Marine Network
  • NMEA 0183® Input
  • Backlighting Options
  • Adjustable Damping
  • Daisy Chain' Connectivity
Large Analogue Display

The large display shows a full 360° view of wind angle.

High Contrast LCD Window

View wind speed, velocity made good or wind direction in the bright display window.

4 Control Buttons

Use the buttons to change the lighting level and configure the LCD.

Apparent/True Wind Selection

Instantly switch between true and apparent wind using the dedicated control buttons. (Requires a heading sensor).

Simnet Intelligent Marine Network

IS20 communicates through the SimNet data bus. Simply plug displays and sensors together, in any order, using the slim line SimNet cables. SimNet makes data sharing and system control easier and more flexible.

NMEA 0183® Input

The NMEA 0183 input enables the IS20 Compass to be used as a repeater display for other instrument systems.

Backlighting Options

Select red or white backlighting and easily adjust intensity. Networked lighting control is also available.

Adjustable Damping

The damping can be adjusted to determine how fast the display will respond to chnages in heading.

Daisy Chain' Connectivity

Simple connection method for multiple instrument and sensor systems.

Display

Display Resolution 130 x 104 (H x W)
Display Type Backlit LCD 4,5 inch matrix display

Other

Compass Safe Distance [mm] 300

Technical/Environmental

Operating Temperature 0 to +55 °C (+32 to +130 °F)
Operating Temperature Stored –30 to +70 °C (–22 to +158 °F) Product Width [mm] 114
Product Height [mm] 114 Product Depth [mm] 38
Weight [kg] 0 Product Width 114 mm / 4.5 in
Product Depth 38 mm / 1.5 in Product Height 114 mm / 4.5 in
Product Weight 0.3 kg / 0.7 lbs

Power

Power Supply (Supply Voltage) 12 V, 0.11A (1.3 W) vDC
