Simrad IS20 Kompas Display

Simrad IS20 Kompas Display

BTW (21%)
Product uit assortiment

Simrad IS20 Kompas Display
In de rubriek Simrad vindt u de producten en prijzen van Simrad. Een selectie Simrad producten die u kunt kopen zoals een radar, kaartplotter, potter, stuurautomaat, autopilot, yachting, ais, marifoon, navigatie apparatuur, nmea 2000, transducer. Volledige fabrieksgarantie op de Simrad producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Simrad IS20 Kompas Display.

Specificaties

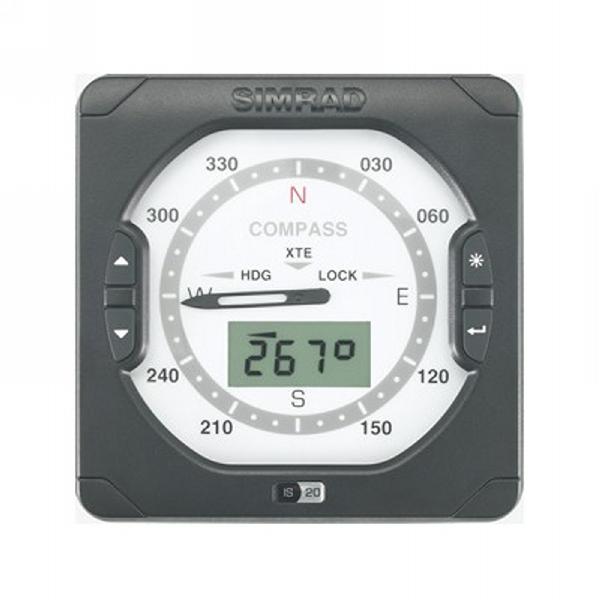

SIMRAD IS20 COMPASS DISPLAY

Display only supplied with 30cm SimNet cable

The IS20 Compass combines a classic easy-to-read needle pointer with an high contrast LCD readout displaying precise heading data.

Key Features
  • Large Analogue Display
  • High Contrast LCD Window
  • 4 Control Buttons
  • Magnetic/True Heading Selection
  • Simnet Intelligent Marine Network
  • NMEA 0183® Input
  • Backlighting Options
  • Heading Lock
  • Adjustable Damping
  • Cross Track Error Display
  • 'Daisy Chain' Connectivity
Large Analogue Display

Large display shows full 360° heading data.

High Contrast LCD Window

View heading with rapid update rate in the bright display window

4 Control Buttons

Use the buttons to change the lighting level and configure the LCD.

Magnetic/True Heading Selection

Select either Magnetic or True Heading with the Up, Down and Enter keys.

Simnet Intelligent Marine Network

IS20 communicates through the SimNet data bus. Simply plug displays and sensors together, in any order, using the slim line SimNet cables. SimNet makes data sharing and system control easier and more flexible.

NMEA 0183® Input

The NMEA 0183 input enables the IS20 Compass to be used as a repeater display for other instrument systems.

Backlighting Options

Select red or white backlighting and easily adjust intensity. Networked lighting control is also available.

Heading Lock

Lock onto a set heading and then display the port or starboard deviation from that heading.

Adjustable Damping

The damping can be adjusted to determine how fast the display will respond to chnages in heading.

Cross Track Error Display

The LCD display can be configured to show cross track error when connected to a GPS.

'Daisy Chain' Connectivity

Simple connection method for multiple instrument and sensor systems.

Display Display Resolution 130 x 104 (H x W)
Display Type Backlit LCD 4,5 inch matrix display Display Type Backlit LCD 4,5 inch matrix display Other Accumulating Log 1
Compass Safe Distance [mm] 300 Technical/Environmental Operating Temperature 0 to +55 °C (+32 to +130 °F)
Operating Temperature Stored –30 to +70 °C (–22 to +158 °F) Product Width [mm] 114
Product Height [mm] 114 Product Depth [mm] 38
Weight [kg] 0 Product Width 114 mm / 4.5 in
Product Depth 38 mm / 1.5 in Product Height 114 mm / 4.5 in
Product Weight 0.3 kg / 0.7 lbs Power Power Supply (Supply Voltage) 12 V, 0.11A (1.3 W) vDC
