SIMRAD IS20 GRAPHIC DISPLAY

Display only supplied with 30cm SimNet cable

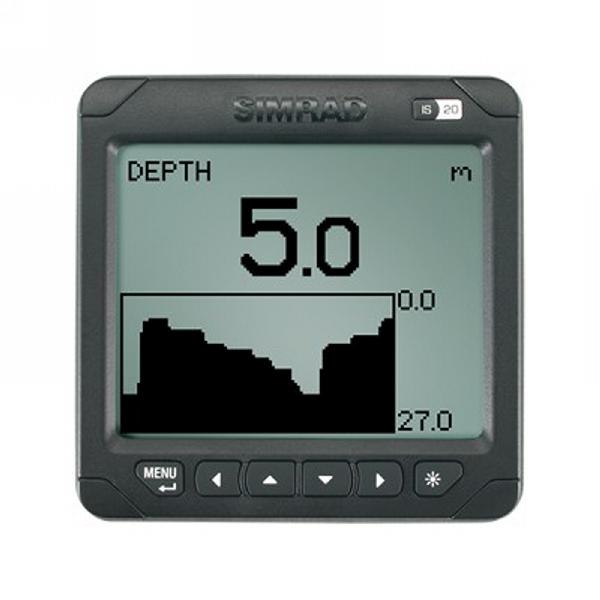

The IS20 Graphic is a flexible digital instrument display. It has 8 data pages, configurable to display your choice of data including, speed, depth, wind log, timer and more. As the IS20 GRAPHIC can operate as a multifunction Simnet or NMEA 0183 repeater, it is ideal for connection to other electronic navigation devices from Simrad Yachting and other marine elctronics manufacturers.

Key Features
  • Multiple Data View
  • Rapid Toggle
  • Graphical Trend Indicator
  • Highly Visible Display
  • Easy To Use
  • Simple Installation
  • Integrated Data Display
  • Simnet Intelligent Marine Network
  • NMEA 0183® Input
  • Simple Set-Up
Multiple Data View

See up to four sets of numeric data from any SimNet sensors onboard on the same page. Use pre-set pages or configure up to eight pages yourself.

Rapid Toggle

Switch between modes in an instant.

Graphical Trend Indicator

View data history on graphical display.

Highly Visible Display

The high contrast LCD display with red or white backlighting is easy-to-read, in all weather and light conditions. The clearly illuminated buttons are also easy to see and use in the dark.

Easy To Use

Simple menus and large control buttons allow for straightforward data selection.

Simple Installation

The IS20 Graphic is front mounted with no need for access on the inside of the console or dashboard.

Integrated Data Display

Choose from a range of preset pages or configure your own custom pages.

Simnet Intelligent Marine Network

IS20 communicates through the SimNet data bus. Simply plug displays and sensors together, in any order, using the slim line SimNet cables. SimNet makes data sharing and system control easier and more flexible.

NMEA 0183® Input

The NMEA 0183 input enables the IS20 Graphic to be used as a repeater display for other instrument systems.

Simple Set-Up

Automatic source selection and a menu-driven interface make first-time setup quick and easy.

Display

Display Resolution 130 x 104 (H x W)
Display Type Backlit LCD 4,5 inch matrix display

Other

Compass Safe Distance [mm] 300

Technical/Environmental

Operating Temperature 0 to +55 °C (+32 to +130 °F)
Operating Temperature Stored –30 to +70 °C (–22 to +158 °F) Product Width [mm] 114
Product Height [mm] 114 Product Depth [mm] 38
Weight [kg] 0 Product Width 114 mm / 4.5 in
Product Depth 38 mm / 1.5 in Product Height 114 mm / 4.5 in
Product Weight 0.3 kg / 0.7 lbs

Power

Power Supply (Supply Voltage) 12 V, 0.11A (1.3 W) vDC
