Simrad IS20 Combi display

Simrad IS20 Combi display

BTW (21%)
Product uit assortiment

Simrad IS20 Combi display
In de rubriek Simrad vindt u de producten en prijzen van Simrad. Een selectie Simrad producten die u kunt kopen zoals een radar, kaartplotter, potter, stuurautomaat, autopilot, yachting, ais, marifoon, navigatie apparatuur, nmea 2000, transducer. Volledige fabrieksgarantie op de Simrad producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Simrad IS20 Combi display.

Specificaties

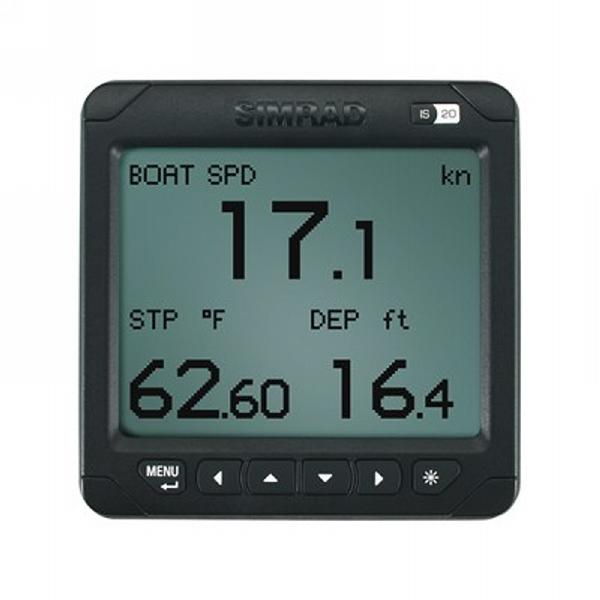

SIMRAD IS20 COMBI DISPLAY

Display only supplied with 30cm SimNet cable

The IS20 Combi is a flexible digital instrument display. Its pages provide a variety of displays showing combinations of Speed, depth, temperature and trip log data. Ideal as a stand alone display or as part of a larger network.

Key Features
  • Multiple Data View
  • Rapid Toggle
  • Graphical Trend Indicator
  • Easy To Use
  • Simple Installation
  • Integrated Data Display
  • Simnet Intelligent Marine Network
  • Cost Effective Stand Alone Option
  • Simple Set-Up
  • Choice of Data Units
  • Multiple Language Options
Multiple Data View

See up to four sets of numeric data from any SimNet sensors onboard on the same preset page.

Rapid Toggle

Switch between modes in an instant.

Graphical Trend Indicator

View data history on graphical display.

Easy To Use

Simple menus and large control buttons allow for straightforward data selection.

Simple Installation

The IS20 Combi is front mounted with no need for access on the inside of the console or dashboard.

Integrated Data Display

Choose from a range of preset pages.

Simnet Intelligent Marine Network

IS20 communicates through the SimNet data bus. Simply plug displays and sensors together, in any order, using the slim line SimNet cables. SimNet makes data sharing and system control easier and more flexible.

Cost Effective Stand Alone Option

Combine with a DST-800 sensor to form a cost effective stand-alone speed/depth system.

Simple Set-Up

Automatic source selection and a menu-driven interface make first-time setup quick and easy.

Choice of Data Units

Select metres, feet or fathoms for depth and knots, mph or kph for speed.

Multiple Language Options

Choose from English, German, French, Spanish, Italian, Dutch, Norwegian and Swedish.

Display Display Resolution 130 x 104
Display Type Backlit LCD 4,5 inch matrix display Other Compass Safe Distance [mm] 300 Technical/Environmental Operating Temperature 0 to +55 °C (+32 to +130 °F)
Operating Temperature Stored –30 to +70 °C (–22 to +158 °F) Product Width [mm] 114
Product Height [mm] 114 Product Depth [mm] 38
Weight [kg] 0 Product Width 114 mm / 4.5 in
Product Depth 38 mm / 1.5 in Product Height 114 mm / 4.5 in
Product Weight 0.3 kg / 0.7 lbs Power Power Supply (Supply Voltage) 12 V, 0.11A (1.3 W) vDC
