Model
|
MAX DISPL. kg(lb)
|
TILLER ARM mm (in.)
|
PWR CONSUMP.
|
H.O. TIME sec. (30% load)
|
MAX RUDDER TORQUE Nm (lb.in.)
|
PEAK THRUST kg (lb.)
|
MAX STROKE mm (in.)
|
Autopilot Computer
|
MOTOR VOLTS
|
NOTE 5
|
NOTE 4
|
NOTE 3
|

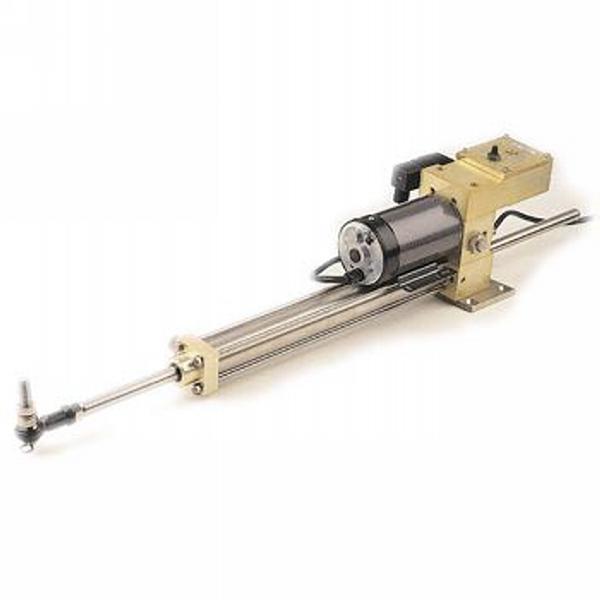

HLD2000L
|
20.000 (44.000)
|
298 (11,7)
|
3 - 10A
| 12
|
1460 (12850)
|
500 (1100)
|
340 (13,4)
|
AC20 J300X
|
12V
NOTES:
1. Except for the DD15 drive unit the motor voltage is transformed by the Autopilot computer when operating from 24V or 32V battery.
2. The specified Autopilot computer is necessary to achieve max drive unit capacity (Use of AC20 will increase the output current and maximum torque by 8 - 10%)
3. Recommended operational thurst or torque is 70% of listed value.
4. Typical average power consumption is 40% of listed maximum value.#
5. Length of tiller arm is based on +/-35% lock to lock. |
