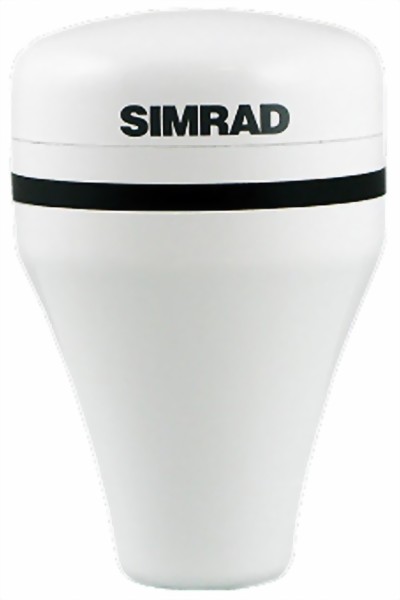

Simrad GS15 GPS-antenne Sensor Met 4M Simnet Kabel

Simrad GS15 GPS-antenne Sensor Met 4M Simnet Kabel

BTW (21%)
Product uit assortiment

Simrad GS15 GPS-antenne Sensor Met 4M Simnet Kabel
In de rubriek Simrad vindt u de producten en prijzen van Simrad. Een selectie Simrad producten die u kunt kopen zoals een radar, kaartplotter, potter, stuurautomaat, autopilot, yachting, ais, marifoon, navigatie apparatuur, nmea 2000, transducer. Volledige fabrieksgarantie op de Simrad producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Simrad GS15 GPS-antenne Sensor Met 4M Simnet Kabel.

Specificaties

Advanced 5Hz performance with a true update rate of 5 times per second for best in class position data during acceleration and high speed manoeuvres.

The Simrad GS15 works with SimNet and NMEA 2000® networks for enhanced location accuracy and improved satellite-signal fix WAAS and EGNOS.

Mounting:

The Simrad GS15 can be mounted on a 1" x 14tpi thread tube or mounting

bracket with the included moutning base. It can also be mounted flat on a surface with a hole of 15 mm for the Micro-C connector. The antenna is secured with two screws from the top.

The antenna is simple to install and includes a 4 m Micro-C to SimNet cable to allow easy networking.

GPS / NAVIGATION

GPS Antenna Type SimNet NMEA2000
GPS Receiver Channels 16 channels
GPS Position Accuracy 3 m 10 ft
GPS: Tracking Capability 12 Satellites tracking. Tracking velocity < 1000 knots
DGPS: Receiver Type SIRF III Chip
DGPS: Start-Up Time Cold start <35s approx. Warm start <1s approx
DGPS: Frequency Range 1575.42 MHz

NETWORKING / CONNECTORS

NMEA Output System time, position, rapid update, GNSS DOP's, GNSS position data, GNSS sats in view (messages required by NMEA 2000 protocol)
Connectors Micro-C male connector

TECHNICAL / ENVIRONMENTAL

Casing UV stable plastic
Mounting Pole or surface mount
Waterproof Standard IP7 (fully watertight)
Height 32 mm 1.3 in
Diameter 75 mm 3 in
Dimensions Height w/mounting base: 110 mm
Weight 0.08 kg 0.18 lbs
Humidity 95% at 60%deg;C (140°F) IEC 60945

POWER

Power Supply 12 V via network cable vDC
Power Consumption 20 - 40mA at 12V

OTHER

Cable Micro-C to SimNet cable 4 m (13 ft)
Operating Temperature -20°C to +70°C (-4°F to 158°F)
