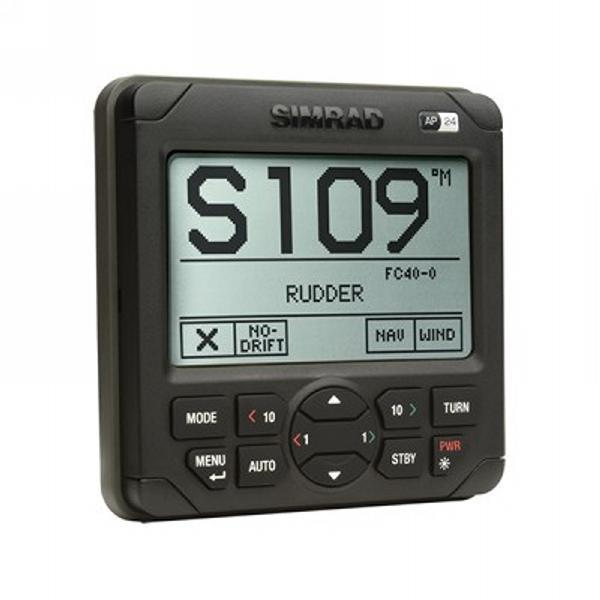

SIMRAD AP24 CONTROL UNIT ONLY

The AP24 autopilot controller features a compact design, ideal for boats with limited mounting space, and an easy to read, highly visible display. Excellent for all types of leisure craft.

Key Features
  • Clear Display
  • Intuitive Menu
  • Integrated Turn Patterns
  • Dodge Function
  • No Drift Mode
  • Virtual Rudder Feedback
  • Constant Depth Tracking
  • Advanced Wind Steering
  • Rate Of Turn Control
  • Auto Tuning
  • Data Pages
  • Fully Waterproof
  • Matches IS20 Instruments
  • SimNet Network
Clear Display

The large numeric data readings are visible from a distance.

Intuitive Menu

Operate your autopilot easily, without the need for extensive manual reading.

Integrated Turn Patterns

A range of integrated turn patterns assist you with fishing, diving, or simply recovering a lost fender.

Dodge Function

The dodge function allows you to navigate around obstructions without disengaging your autopilot.

No Drift Mode

Combining the power of the autopilot and the GPS via the SimNet network allows you to operate in no drift mode. This counteracts the effect of wind and tide to ensure your track remains straight or true over the ground.

Virtual Rudder Feedback

Eliminates the need to fit a rudder position sensor, which saves both time and money on tight installations such as outboards and stern drive boats.

Constant Depth Tracking

Data shared with the echo sounder over the SimNet network allows the Pilot to follow the line of the seabed, and remain in a constant depth of water.

Advanced Wind Steering

It's possible for the Pilot to use wind and navigation information, when shared on a network with an IS20 system and chartplotter, to assist you in sailing most efficiently to your destination.

Rate Of Turn Control

Ensures smooth and precise turns regardless of the sea state. Excellent for tacking and gybing of sailboats.

Auto Tuning

Optimum performance without the need for expert calibration.

Data Pages

View vital instrument data on the autopilot controller via the SimNet network.

Fully Waterproof

Certified to IPX6 (from front)

Matches IS20 Instruments

Mount the autopilot controller near an IS20 instrument for an aesthetically pleasing result.

SimNet Network

Features two SimNet connections for sharing data across your network. NMEA2000® compatible.

Display Display Resolution 130x79 (H x W)
Display Type TFT Matrix LCD Display Type Transflective matrix LCD display
Display Resolution [pixels x pixels] 130x79 Multi-language Display True Technical/Environmental Product Width [mm] 115
Product Height [mm] 115 Product Depth [mm] 39
Weight [kg] 0 Product Width 114mm / 4.5 in
Product Depth 39 mm / 1.5 in Product Height 114 mm / 4.5 in
Product Weight .3 kg .7 lbs Networking Connectors NMEA 0183 Interface (2) SimNet ports Autopilot/Auto-Steering Rudder Angle Bar Graph True
Automatic Turn Patterns True Course Change Rotary Knob True
Depth Contour Tracking True DODGE True
Follow Up Power Steering True Heading Capture In Turns True
+/- 1 degree keys [D or S] D Remote Station Lock True
+/- 10 degree keys [D or S] D Diagrams Measurement diagrams /upload/Simrad/Images/Products/Dimentions/Simrad_AP24_dimentions.jpg Other Dedicated Mode Keys True
Languages 8
