Simrad 4G Breedband Radar voor Nse Serie ( 20M )

Simrad 4G Breedband Radar voor Nse Serie ( 20M )

BTW (21%)
Product uit assortiment

Simrad 4G Breedband Radar voor Nse Serie ( 20M )
In de rubriek Simrad vindt u de producten en prijzen van Simrad. Een selectie Simrad producten die u kunt kopen zoals een radar, kaartplotter, potter, stuurautomaat, autopilot, yachting, ais, marifoon, navigatie apparatuur, nmea 2000, transducer. Volledige fabrieksgarantie op de Simrad producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Simrad 4G Breedband Radar voor Nse Serie ( 20M ).

Specificaties

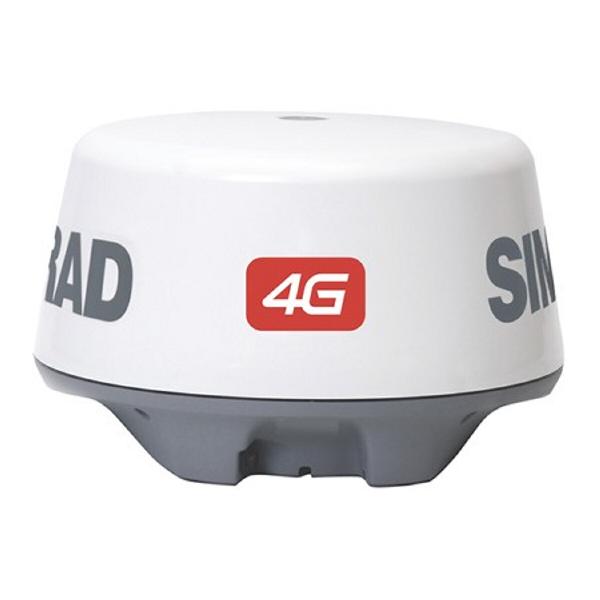

Simrad 4G BROADBAND RADAR SUITS NSE SERIES (20M)

Joining the family of award-winning Broadband 3G™ Radar and BR24 Broadband Radar™ — the world’s first recreational marine FMCW system — Broadband 4G Radar delivers 50-percent greater range and target detection than Broadband 3G Radar. All 4G radar models feature revolutionary Beam Sharpening technology that provides the sharpest-possible radar images. When networked with most display options, the new Simrad Broadband 4G models also have the unprecedented ability to present dual-range radar returns from a single scanner, combined with the benefits of greater high-speed operation.* For optimal target separation, Broadband 4G Radar is the world’s first dome radar to use Beam Sharpening, which significantly improves azimuth resolution — the effective horizontal beam width of the radar signal. The result is a resolution that is equivalent to a 3.5-foot, open-array radar. When combined with a Simrad multifunction display, the system’s user-defined, target-separation control allows users to adjust the level of separation to meet specific navigational needs.

The Simrad Broadband 4G Radars’ exclusive dual-range functionality makes them the only recreational radars capable of displaying distances from 200 feet to 36 nautical miles — all from a single dome. The ultimate navigational safety tool, Broadband 4G Radar allows boaters to see a buoy 200 feet away on the multifunction display, while simultaneously monitoring coastal projections up to 36 nautical miles. In addition,  Simrad Broadband 4G Radar models can track up to 10 MARPA targets per range — each with independent control, for a total of 20 tracked targets in split-screen mode.

All Broadband 4G Radars provide an unequalled number of working ranges, 18, for premier performance and navigational awareness. Providing intuitive and easy-to-use operation, each model also features smart, pre-defined Offshore and Harbour modes on all ranges without requiring special tuning knowledge.

Broadband 4G Radar not only raises the bar in radome performance by providing far superior resolution at long-range distances, it also delivers the same exceptional close-range capability that is signature to Broadband Radar. The system marks objects within 2 meters (6.5 feet) of the boat, providing target definition and separation in close quarters where traditional pulse radar is blind. Maintaining high-sensitivity and clarity in all weather conditions, the radar provides easy-to-view detail of targets even in high-sea states.

SPECIFICATIONS
  • Compliance FCC/IC/R&TTE FCC ID: RAY3G4G IC ID: 4697A-3G4G Human Exposure General Public Safety Limit - touch dome anywhere
  • Environmental IEC60945 4th edition 2002-2008 Operating Temperature: -25° to +55°C Relative humidity: +35°C, 95% RH Waterproof: IPX6
  • Relative wind velocity 51 m/sec (Max:100 Knots)
  • Power consumption Operating: 20W (Typ.) @ 13.8VDC(21W in dual range mode) Standby: 3.3W (Typ.) @ 13.8VDC ~ 150ma
  • DC input (at end of radar cable) 9V to 31.2Vdc (12/24 Volt systems). Reverse polarity protection Minimum start-up voltage 10.8Vdc
  • Transmitter Source (pre-heating time) No magnetron - Instant On
  • Outside dimensions Height 280mm (11.02”) x Diameter 488mm (19.28”)
  • Weight (no cable) 7.4 kg (16.3 lbs.)
Radar and Antenna Parameters
  • Radar Ranges 50m (200ft) to 66km (36nm) with 18 range settings (nm/sm/km) - single and dual range mode (independant)
  • Rotation 24/36/48rpm +/- 10%; Mode and MFD model dependant
  • Transmitter frequency X-band - 9.3 to 9.4Ghz
  • Transmitter source(warm-up time) No Magnetr  - all solid state. Instant On
  • Plane of polarization Horizontal Polarization
  • Transmitter peak power output (at antenna port) 165mW (nominal - at antenna port)
  • Main Bang Dead Zone & Tuning None (not a pulse radar)
  • Sea and Rain Clutter 3-5 times less than a pulse radar
  • Sweep Repetition Frequency 200 - 540Hz (mode dependant)
  • Sweep Time 1.3ms +/- 10%
  • Sweep Bandwidth 75MHz max
  • Horizontal Beam width (Tx and Rx antenna) 5.2° +/- 10% (-3dB width)
  • Vertical Beam width (Tx and Rx antenna) 25° +/- 20% (-3dB width)
  • Side lobe level (Tx and Rx antenna) Below -18dB (within ±10°); Below -24dB (outside ±10°)
  • Noise figure Less than 6dB
Coms/Cabling/Mounting
  • Com Protocol High Speed Ethernet (100 Base-T)
  • Heading NMEA2000/Simnet (with RI-10 interface box)
  • Inter Connecting cable length 20m (65.6’)
  • Maximum Inter Connecting cable length 30m (98.4’) - available as an option
  • Bolts (4) M8x30 - 304 stainless steel
  • Footprint W233.0mm (9.17”) (port to starboard) x L141.5mm (5.57”)
