Scanstrut Sr1 Compact Dual Power Tower Voor Satcom & Radar

Scanstrut Sr1 Compact Dual Power Tower Voor Satcom & Radar

BTW (21%)
Product uit assortiment

Scanstrut Sr1 Compact Dual Power Tower Voor Satcom & Radar
In de rubriek ScanStrut vindt u de producten en prijzen van Scanstrut. Een selectie Scanstrut producten die u kunt kopen zoals een radar beugel, mount, power tower, display behuizing, zelfnivellerende beugel, waterdichte hoes, instrument pod, radar mast. Volledige fabrieksgarantie op de Scanstrut producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Scanstrut Sr1 Compact Dual Power Tower Voor Satcom & Radar.

Specificaties

Compact Dual PowerTower

Product overview

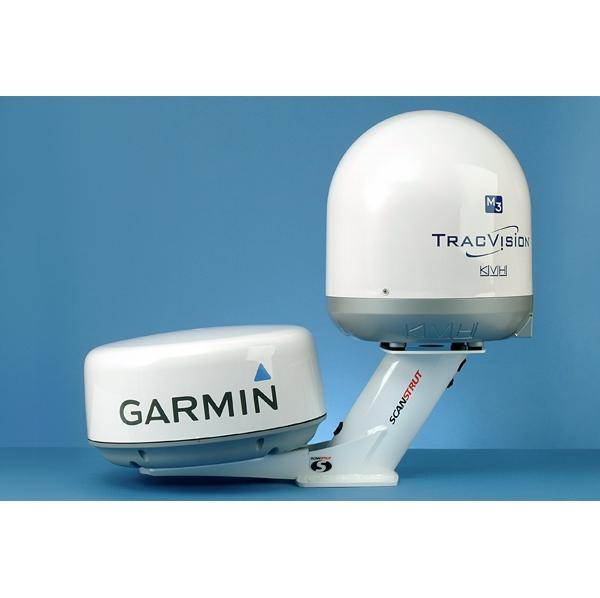

Scanstrut’s Compact Dual PowerTower allows installation of 2kW and 4kW radomes and 30cm satcom antennas together on a single space-saving mount. Installing the satcom antenna above the radar eliminates antenna interference and ensures maximum performance from both applications.

Featuring an adjustable radar mounting plate, the mount allows for variation in radome size, enabling the radar to be positioned as close as possible to the structural centre of gravity, ensuring minimal load is placed on the radar arch.

Features

  • Lightweight fabrication – only 8.37 lbs / 3.8 kg
  • Minimal mounting area required, can be installed even where deck space is limited
  • Hollow stem to route cables neatly inside mount
  • Pre-fitted waterproof IP65 gland to seal cable entry into stem
  • Pre-drilled mounting holes for quick and easy installation

Dimensions

  • 250mm low profile - an ideal installation for smaller power boats
  • 200mm square footprint – minimal mounting area required

Materials

  • Marine grade 6082 aluminium
  • Polyester powder coated for a durable and gloss white finish

Kit includes

  • 1 x Compact Dual PowerTower
  • 1 x Radome mounting plate
  • 1 x Watertight base seal
