Art.Nr.:

Scanstrut LMB- F2 Self - Nivellering Radar Mount - Achterstag ( voor gemonteerd)

Scanstrut LMB- F2 Self - Nivellering Radar Mount - Achterstag ( voor gemonteerd)

BTW (21%)
Product uit assortiment

Scanstrut LMB- F2 Self - Nivellering Radar Mount - Achterstag ( voor gemonteerd)
In de rubriek ScanStrut vindt u de producten en prijzen van Scanstrut. Een selectie Scanstrut producten die u kunt kopen zoals een radar beugel, mount, power tower, display behuizing, zelfnivellerende beugel, waterdichte hoes, instrument pod, radar mast. Volledige fabrieksgarantie op de Scanstrut producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Scanstrut LMB- F2 Self - Nivellering Radar Mount - Achterstag ( voor gemonteerd).

Specificaties

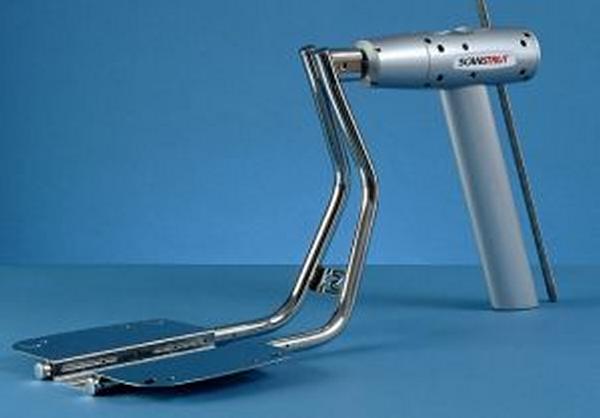

LMB-F2 Self Levelling Radar Mount – Backstay

Forward facing. Suits most Furuno, Navico, Nobeltec and Sitex domes.  Check attached brochure.

This Self-Levelling Backstay Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.  Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.

Features

  • Hydraulic damping to eliminate minor oscillations
  • Sealed system – entirely maintenance free
  • Passive system – no power required
  • Lightweight head unit – reduced weight aloft
  • Stainless radome cradle with fine tune adjustment for backstay angle – suitable for any yacht
  • Nylon backstay bushing supplied - clamps around backstay allowing cable tension to be adjusted

Dimensions

2.6m pole - supplied in lengths of 1.3m. Additional 0.6m and 1.3m lengths available

Materials

Finest quality machined and anodised aluminium pole and head unit – lasts the lifetime of your yacht.  Marine grade 316 stainless steel cradle and base plate

Kit includes

  • 1 x Levelling mount with integral backstay bushes (to fit 7, 8, 10 and 12mm diameter backstay cables)
  • 2 x 1.3m lengths of mounting pole
  • 1 x Joiner piece for mounting pole
