Art.Nr.:

Scanstrut Dpt - So1 - 40 Dual PowerTower - Voor Open Array & 40cm Satcom

Scanstrut Dpt - So1 - 40 Dual PowerTower - Voor Open Array & 40cm Satcom

BTW (21%)
Product uit assortiment

Scanstrut Dpt - So1 - 40 Dual PowerTower - Voor Open Array & 40cm Satcom
In de rubriek ScanStrut vindt u de producten en prijzen van Scanstrut. Een selectie Scanstrut producten die u kunt kopen zoals een radar beugel, mount, power tower, display behuizing, zelfnivellerende beugel, waterdichte hoes, instrument pod, radar mast. Volledige fabrieksgarantie op de Scanstrut producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Scanstrut Dpt - So1 - 40 Dual PowerTower - Voor Open Array & 40cm Satcom.

Specificaties

Dual PowerTower

Product overview

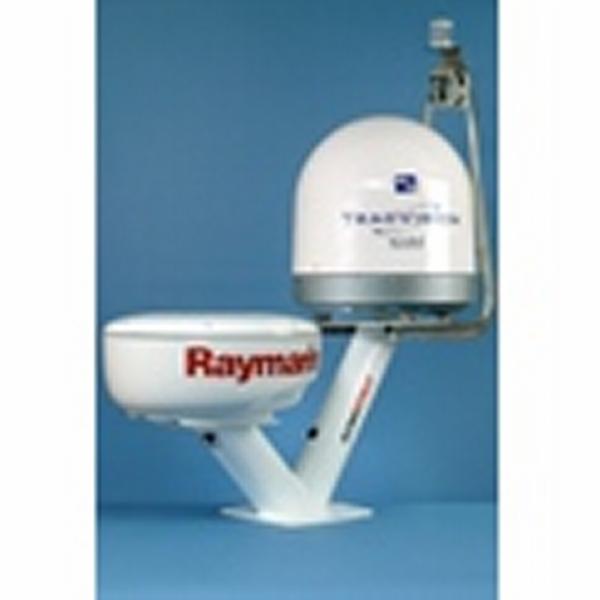

Scanstrut’s Dual PowerTower mounts allow the installation of radar and satcom antennas together on a single space-saving mount. Installing the satcom antenna above the radar eliminates antenna interference and ensures maximum performance from both applications.

The range includes options to mount:

  • 2kW or 4kW radomes + 40cm or 60cm satcom antennas
  • 4’ open-array + 40cm or 60cm satcom antennas

Download the Brochure  and refer to the Product Selection Guide at the back to check which of the range is required.

Features

  • Minimal mounting area required, can be installed even where deck space is limited
  • Hollow stem to route cables neatly inside mount
  • Pre-fitted waterproof IP65 gland to seal cable entry into stem
  • Pre-drilled mounting holes for quick and easy installation

Dimensions

  • 11.5” / 290mm square footprint

Materials

  • Marine grade 6082 aluminium
  • Polyester powder coated for a durable and gloss white finish

Kit includes

  • 1 x Dual PowerTower
  • 1 x Watertight base seal
  • 1 x Waterproof IP65 gland (pre-fitted)
