Raymarine Type 3 Hydraulische Lineaire aandrijving 12V
Raymarine Type 3 Hydraulische Lineaire aandrijving 12V
BTW (21%)
Raymarine Type 3 Hydraulische Lineaire aandrijving 12V
Raymarine Type 3 Hydraulische Lineaire aandrijving 12V |
![]() |
In de rubriek Raymarine vindt u de producten en prijzen van Raymarine. Een selectie Raymarine producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie apparatuur, seatalk, nmea 2000, transducer. Volledige fabrieksgarantie op de Raymarine producten. Verzenden of afhalen is mogelijk. |
Tips en adviesDe gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant. |
ContactHeeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Raymarine Type 3 Hydraulische Lineaire aandrijving 12V. |
Specificaties

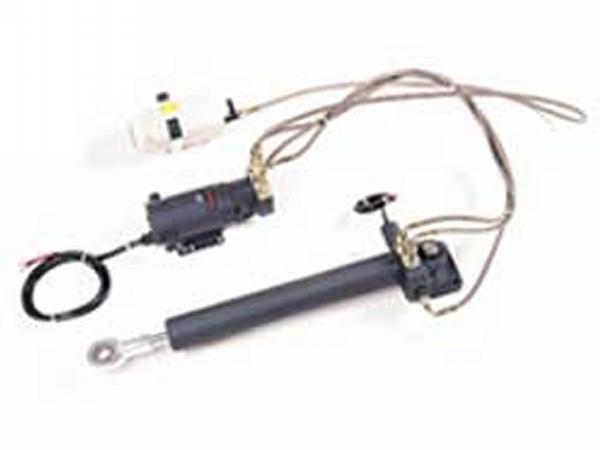

Type 3 Hydraulic Linear system for mechanically steered vessels up to 77,000lb (35,000kg) displacement The hydraulic linear drive system is designed for boats with existing mechanical steering systems, not hydraulic steering systems. It provides a totally isolated autopilot steering system consisting of: ? Hydraulic ram: a self-contained autopilot steeringcylinder with a load limiting system and a built in clutch (to allow friction-free steering when the autopilot is not in use). ? Reversing hydraulic pump: powers the hydraulic ram. ? Hydraulic fluid reservoir: supplies hydraulic fluid to the system. Specifications Helm speed Hardover to hardover time (+/- 35º, no load) 12 sec Maximum rudder torque 23,100 lb.in (2,565 Nm) Maximum stroke 12 in(305 mm) Maximum vessel displacement 77,000lb (35,000 kg) Peak thrust 2,200 lb (1,000 kg) |
