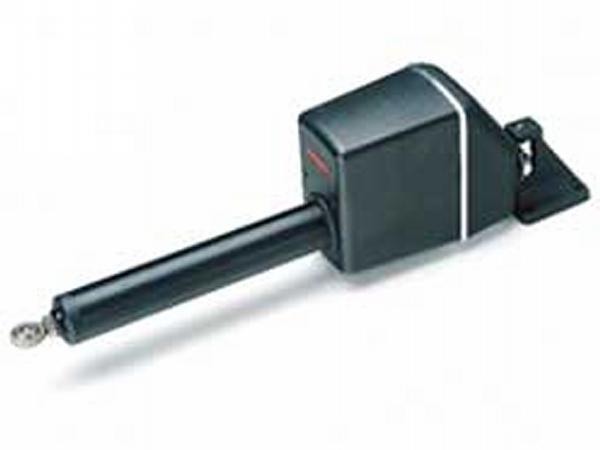

Raymarine Type 2 Lineaire aandrijving 24V Ss
Raymarine Type 2 Lineaire aandrijving 24V Ss
BTW (21%)
Raymarine Type 2 Lineaire aandrijving 24V Ss
Raymarine Type 2 Lineaire aandrijving 24V Ss |
![]() |
In de rubriek Raymarine vindt u de producten en prijzen van Raymarine. Een selectie Raymarine producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie apparatuur, seatalk, nmea 2000, transducer. Volledige fabrieksgarantie op de Raymarine producten. Verzenden of afhalen is mogelijk. |
Tips en adviesDe gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant. |
ContactHeeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Raymarine Type 2 Lineaire aandrijving 24V Ss. |
Specificaties
24 Volt Type 2 (short) Linear drive for mechancically steered vessels up to 33,000 lb(15,000kg). Designed for boats with existing mechanical steering systems. The mechanical linear drive provides powerful thrust, fast hardover times and quiet operation. Features ? low backdrive force, to minimize the drive?s effect on the boat?s steering when the autopilot is in standby ? a powerful electric motor controlled by an electromagnetic fail-safe clutch, using a high tensile belt drive and epicyclic gearbox ? high performance for minimum current consumption Specifications Helm speed Hardover to hardover time(+/- 35º, no load) 11 sec Maximum rudder torque 10,500 lb.in (1,190) Maximum stroke 12 in(300mm) Maximum vessel displacement 33,000lb (15,000 kg) Peak thrust 1,050 lb (480 kg) Power Consumption 48-72 W (12 V) 66-96W (24 V) typical average |
