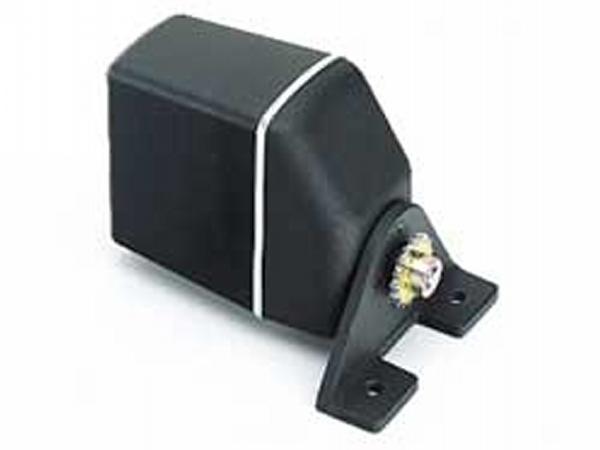

Raymarine Type 1 Rotary Drive 12V
Raymarine Type 1 Rotary Drive 12V
BTW (21%)
Raymarine Type 1 Rotary Drive 12V |
![]() |
In de rubriek Raymarine vindt u de producten en prijzen van Raymarine. Een selectie Raymarine producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie apparatuur, seatalk, nmea 2000, transducer. Volledige fabrieksgarantie op de Raymarine producten. Verzenden of afhalen is mogelijk. |
Tips en adviesDe gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant. |
ContactHeeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Raymarine Type 1 Rotary Drive 12V. |
Specificaties
12 Volt Rotary Drive for sprocket and chain type steering systems on vessels up to displacement 22,000 lb(10,000kg) The Rotary drive is designed for steering systems that can be driven from the helm position through a chain and sprocket (for example: cable and rod steering systems). The outstanding design of the Raymarine rotary drive unit provides smooth, powerful autopilot-controlled steering with quiet operation. The main parts of the drive are: ? a rugged electric motor, that drives a precision epicyclic gearbox via a high tensile drive belt ? an electromagnetic clutch that transmits high torque loads without slipping Specifications Maximum shaft speed 33 rpm Maximum vessel displacement 22,000 lb(10,000 kg) Peak output torque 180 ln.in (20Nm) Power Consumption 24-48 Watts typical average Recommended hardover to hardover time 10 sec no load |
